C-M26F12-12X1,0PU15,0-MA-077637 (Order no. 077637)

Connecting cable with plug connector SR11, 15m, angled

  • Female plug SR11, 11-pin + PE
  • Angled plug connector
  • PUR cable
  • Cable length 15 m
  • With flying lead
C-M26F12-12X1,0PU15,0-MA-077637 (Order no. 077637)

Description

Connector assignment

11
22
33
44
55
66
77
88
99
1010
1111

12

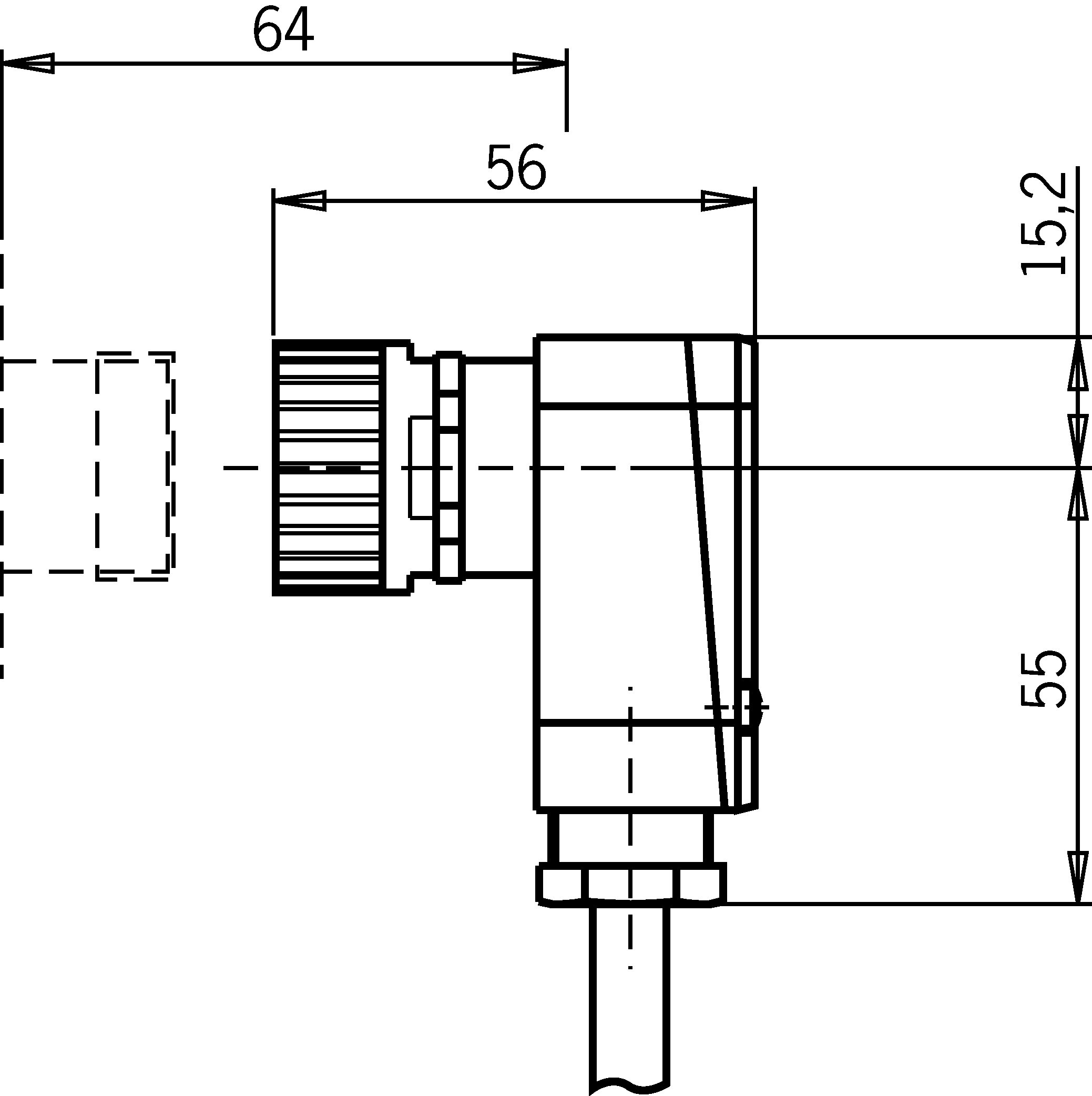

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimension drawings

Dimension drawings

Dimension drawings

Dimension drawings

Technical data

Electrical connection ratings

Rated voltage 50 V
Test voltage 1.5 kV

Mechanical values and environment

Conductor cross-section 1 mm²
Number of conductors 12
Material
Sheath PUR
Dynamic bending radius 12.5 x outer diameter
Static bending radius 4 x outer diameter
Cable type straight
Cable diameter
approx. 10.5 mm
Cable length 15 m
Drag chain suitability no
Cable ambient temperature (dynamic) -5 ... +70 °C
Cable ambient temperature (static) -40 ... +80 °C
Connection 2
Conductor end Sheath stripped
Connection flying lead
Connection 1
Connection type Female plug
Connection Plug connector M26 x 1.5
Degree of protection IP65 (only in the screwed tight state)
Material
Plug housing PET
Cable outlet Angle
Number of pins 12 (11+PE)
Plug lock Screw connection

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 077637
Item designation C-M26F12-12X1,0PU15,0-MA-077637
Gross weight 2,961kg
Customs tariff number 85389099
