RIEGEL NZ-AB (Order no. 083890)

Bolt NZ-A... for safety switches NZ.VZ and NZ.VZ.VS

  • Steel bolt
  • For doors hinged on the right
  • Ball detent mechanism in closed position
  • Can be locked in open position with padlocks
  • Actuator and switch bracket included
RIEGEL NZ-AB (Order no. 083890)

Description

Advantages

  • Robust construction
  • Easily fitted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Special features

  • Bolt NZ-.B latches in open and closed position
    • Prevents unintentional opening and closing of the bolt
  • Easy to use

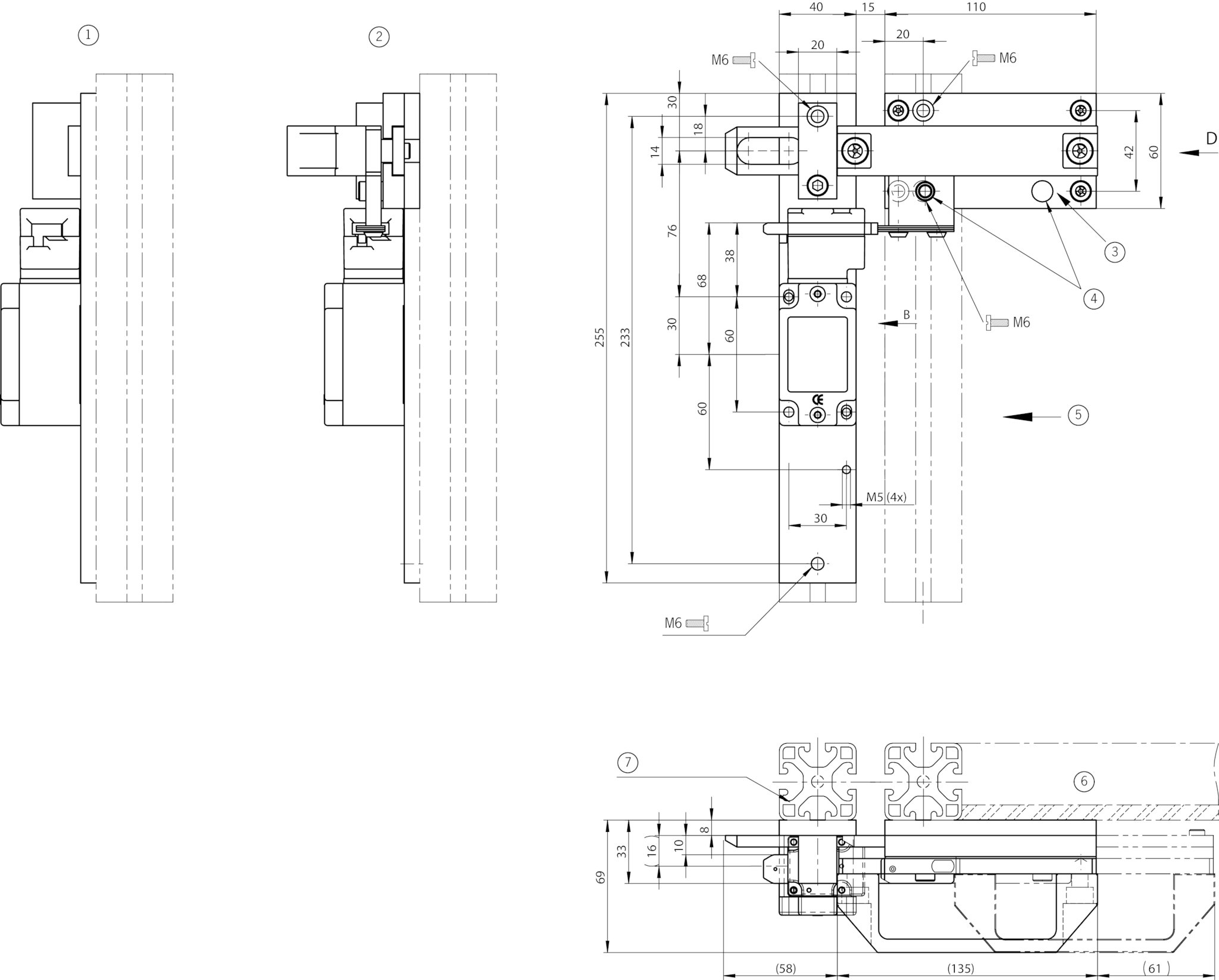

Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing
1View B
2View D
3Attention! Bolt is not allowed to be used in conjunction with an escape release!
4Detent mechanism against accidental opening/closing (vibration)
5Safety switch NZ.VZ approach direction A
6Door hinged on the right
7Safety guard frame (40x40)

Technical data

Mechanical values and environment

Material
Handle Plastic
Guide strips Plastic
Base plate Galvanized steel
Switch bracket Steel powder-coated
Weight
Net 1,75 kg
Escape release No
Number of safety switches that can be fitted 1

Other

Detent mechanism
Open position Ball detent mechanism
Closed position Ball detent mechanism
