Bolt NZ-C... for safety switches NZ.VZ and NZ.VZ.VS
- Steel bolt
- For doors hinged on the left
- Ball detent mechanism in closed position
- Can be locked in open position with padlocks
- Actuator and switch bracket included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
Special features
- NZ-.B bolt engages in open and closed position
- Prevents unintentional opening and closing of the bolt
- Easy to use

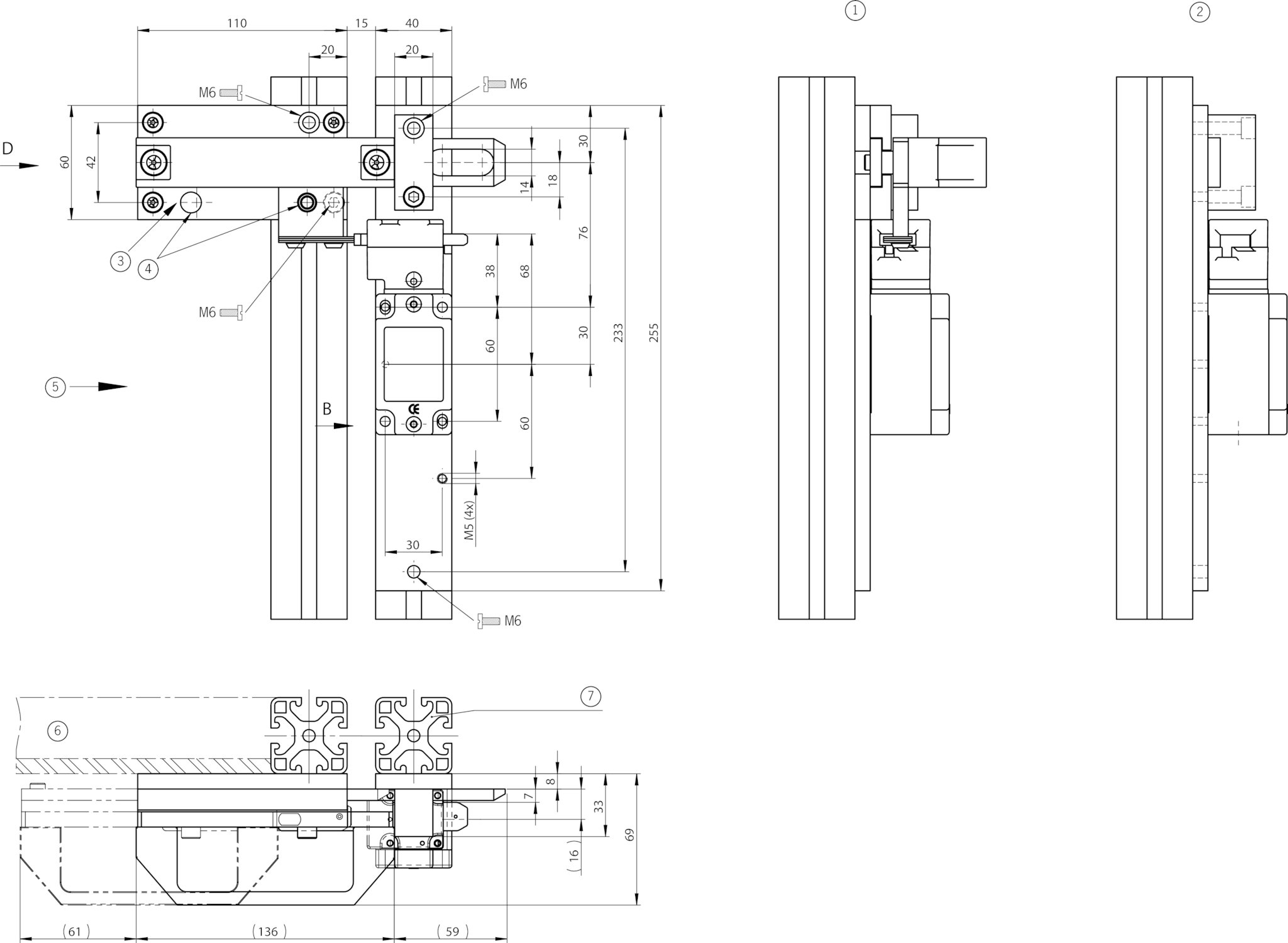

Dimensional drawings
1 | View D |
2 | View B |
3 | Attention! Bolt is not allowed to be used in conjunction with an escape release! |
4 | Detent mechanism against accidental opening/closing (vibration) |
5 | Safety switch NZ.VZ approach direction C |
6 | Door hinged on the left |
7 | Safety guard frame (40x40) |
Technical data
Mechanical values and environment
Approach direction | C |
Number of safety switches that can be mounted | 1 |
Escape release | none |
Material | |
Guide strips | Plastic |
Base plate | Galvanized steel |
Handle | Plastic |
Switch bracket | Steel powder-coated |
Miscellaneous
Detent mechanism closed position | Ball detent mechanism |
Detent mechanism open position | Ball detent mechanism |
