CET-A-BWD-50X-127943 (Order no. 127943)
Choose content
Actuator CET-A-BWD-50X
- Actuator for read head/safety switch CET
- Four safety screws M5x16 included

Description
Dimensional drawings

1 | Chamfer |
2 | Active face |
Technical data
Electrical connection values
Power supply | Inductive via read head |
Mechanical values and environment
Approach direction | D |
Storage temperature | -25 ... 70 °C |
Mechanical life | 2 x 10⁶ |
Degree of protection | IP67 (Degree of protection of the transponder) |
Ambient temperature | -20 ... 55 °C |
Material | stainless steel |
Locking force Fmax | 6500 N |
Locking force FZh | 5000 N |
Accessories
Function expansion
Cover for actuator CET

124979
AM-C-124979
AM-C-124979
- Horizontal and vertical mounting option on the actuator
- Mounting using 4 screws M5x16 (included with the actuator)

124721
AM-C-124721
AM-C-124721
- Horizontal mounting option on the actuator
- Mounting using 4 screws M5x16 (included with the actuator)

125503
AM-C-125503
AM-C-125503
- Cover for actuator CET
- Horizontal and vertical mounting option on the actuator
- Mounting using 4 screws M6x16 (not included)
- Suitable for combination with the lockout bar for CET actuator AE-L-CET-156429
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)
Single Documents
Declarations of conformity

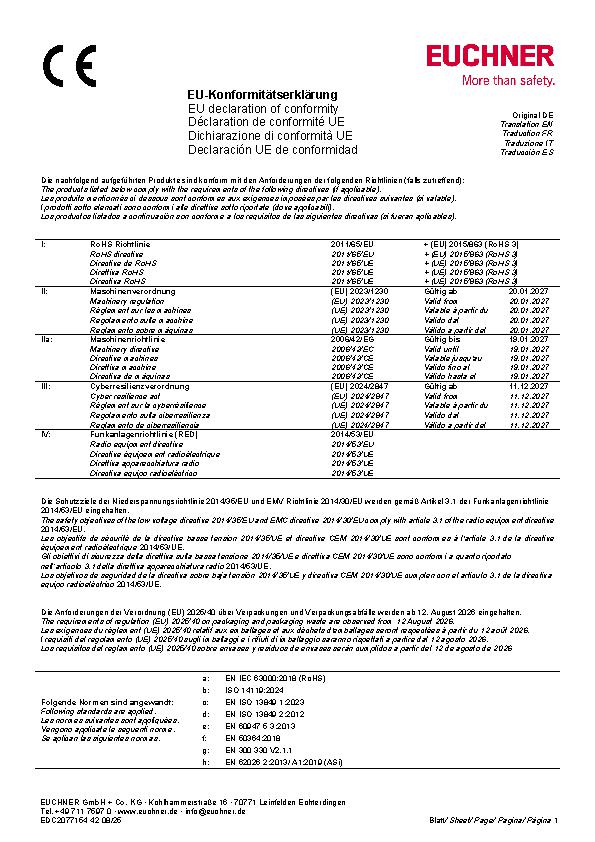

EU-Konformitätserklärung
Doc. no.
Version
Language
Size

EU-Konformitätserklärung
Doc. no.
EDC2077154
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size

UKCA-Konformitätserklärung
Doc. no.
EDC20001581
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size

WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
Ordering data
Ordernumber | 127943 |
Item designation | CET-A-BWD-50X-127943 |
Gross weight | 0,285kg |
Customs tariff number | 85389099990 |
ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
