Series KE...
- Control panel installation according to IEC 947-5-1 D22
- 1 to 4 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
- Soldered connection
- Miniature version with special handle
- Center-position switch
Description

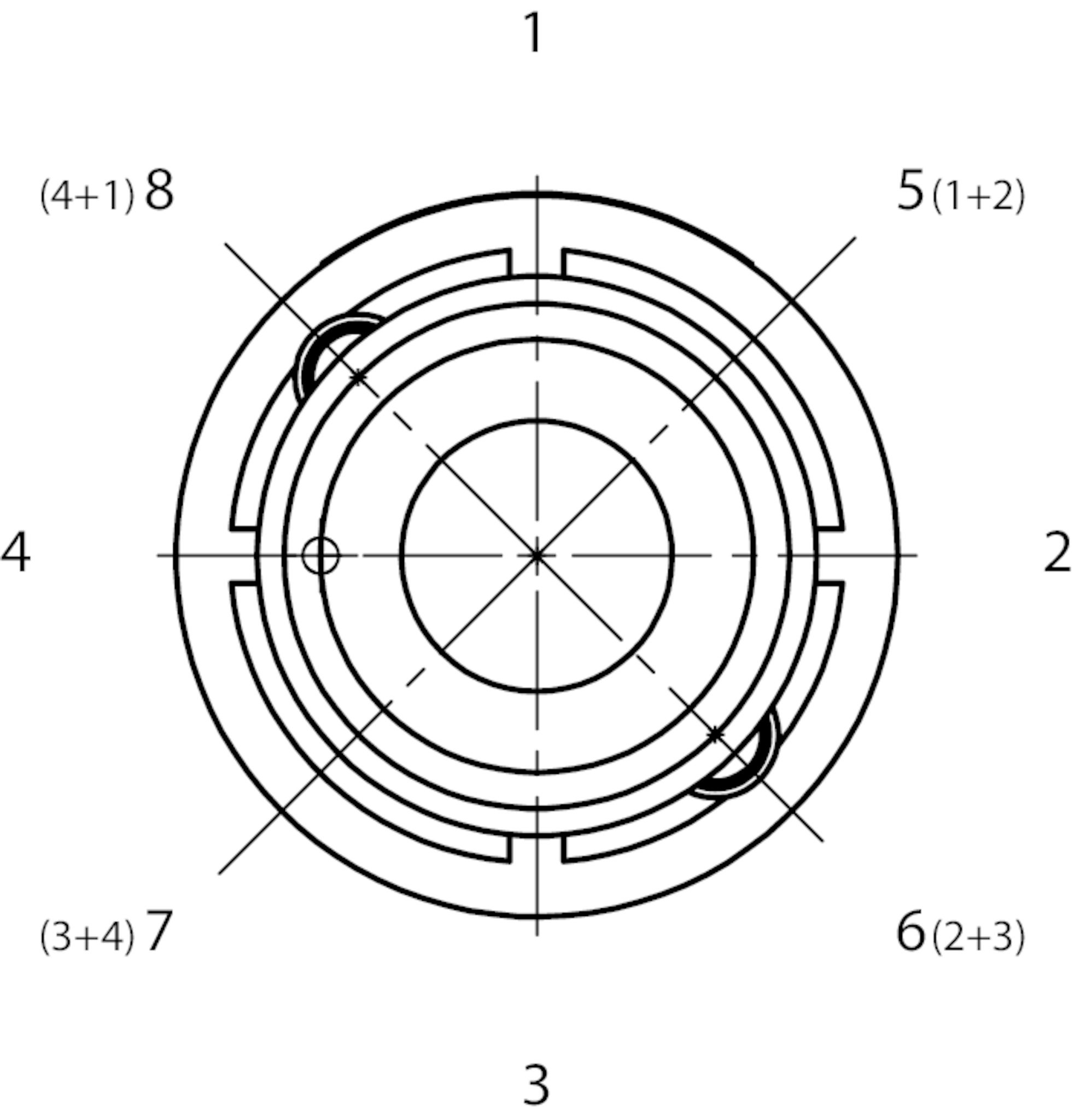

Functional drawings
Functional drawings

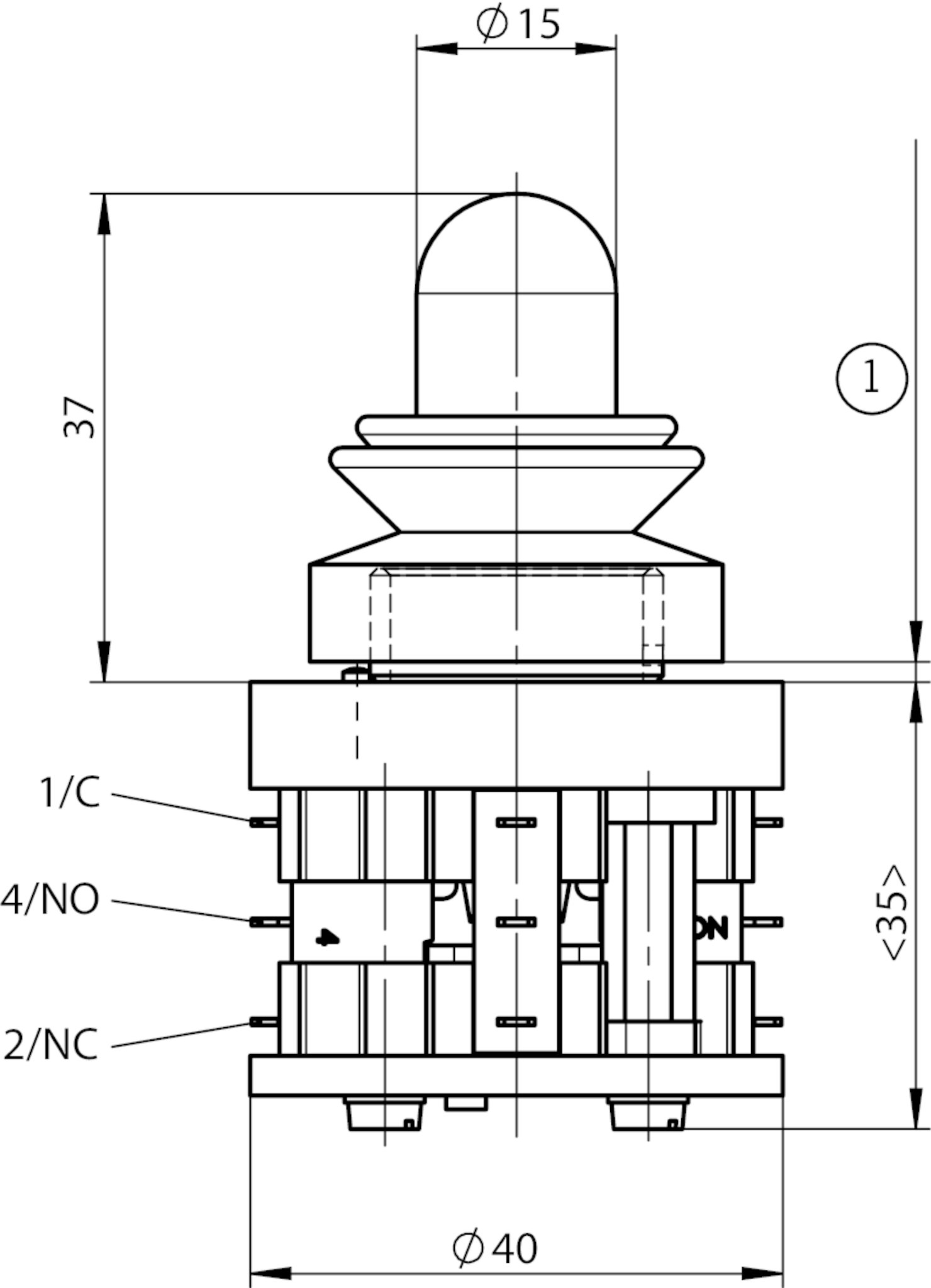

Dimensional drawings
1 | 1-5 - 4 control panel thickness |
Dimensional drawings

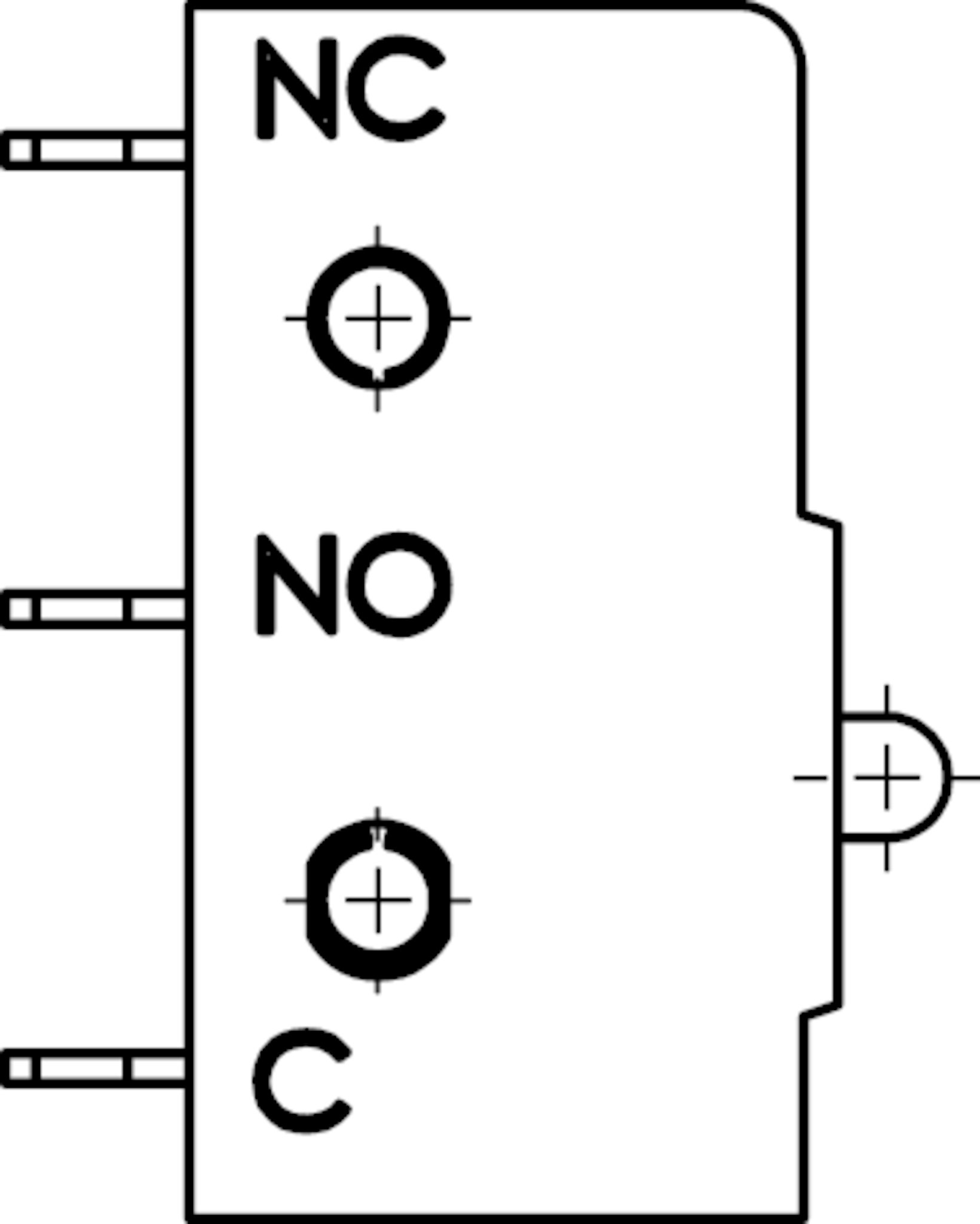

Connection examples
Technical data
Approvals
Electrical connection values
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2.5 kV |
Utilization category | |
DC-13 | 24 V 2 A |
AC-15 | 230 V 2 A |
Short circuit protection according to IEC 60269-1 | T10/F20 |
Switching voltage | min. 10 V |
Switching current | |
(at 24 V) | min. 12 mA |
Mechanical values and environment
Connection type | Soldered connection |
Number of monitoring contacts | 4 (4 directions) |
Actuating directions | 4 (Pushbutton) |
Mechanical life | 1 x 10⁶ |
Mounting type | IEC 947-5-1 D22 ((bore 22.5)) |
Switching principle | Changeover contact C, IEC 947-5-1 (Snap-action contact element, design ES587) |
Degree of protection | |
on the front with bellows | IP65 |
Ambient temperature | -25 ... +65 °C |
Material | |
Contact | Gold |
Switching lever stainless steel | |
Housing thermoplastic | |
Bellows elastomer, black (Low PAH) |
Miscellaneous
P number | |
P110 |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001504
Version
Language
Size
0,1 MB
Other Documents
Ordering data
Ordernumber | 105607 |
Item designation | KET1234P187 |
Gross weight | 0,097kg |
Customs tariff number | 85365019000 |
ECLASS | 27-37-14-04 Control switch, joystick |
