MSM-1-P-CA-Q0P2P0-M1-171767 (Order no. 171767)
Choose content
Submodule MSM-1-P... (1 mushroom-head pushbutton, 1 gray pushbutton, illuminated with symbol)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 1 mushroom-head pushbutton
- 1 gray pushbutton, illuminated with symbol
- 1 cut-out for slide-in label
- incl. slide-in label
Description
Dimensional drawings
| Pos 1 | Slide-in label |
| Pos 2 | Mushroom-head pushbutton |
| Pos 3 | illuminated pushbutton, gray |
| Z | marks orientation of item 1 |
Dimensional drawings

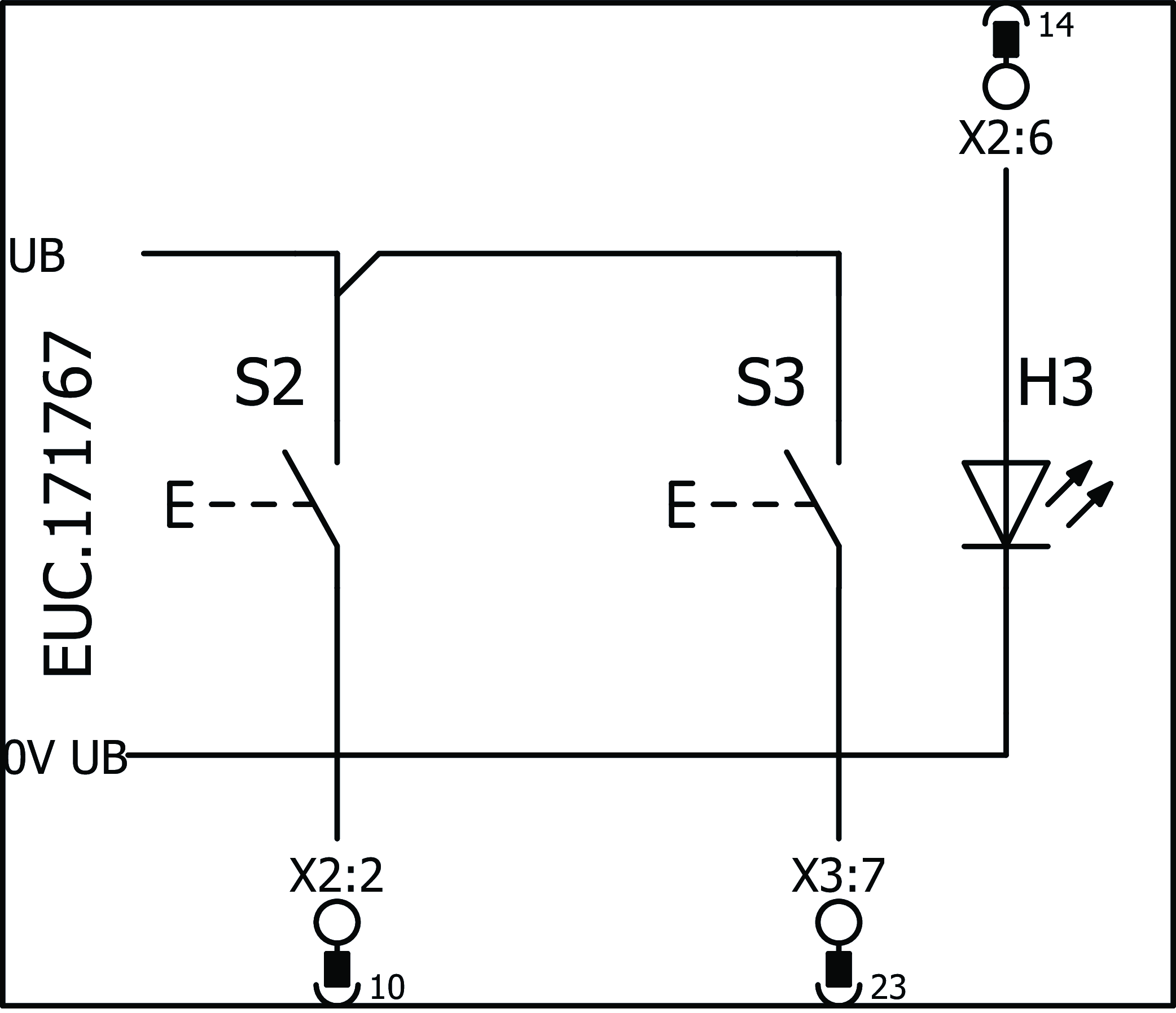

Connection examples
Technical data
Approvals
Operating and display elements
| Item | Color | Extras | Version | Switching element | Slide-in label | Note slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 17.5x27 mm | Position for slide-in label | |||||||
| 2 | green | Mushroom-head pushbutton | 1NO | ||||||
| 3 | gray | printed | Illuminated pushbutton | 1NO |
Electrical connection values
| Current consumption | max. 12 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 | Slide-in label | |||||
| |||||||
| Software ID (SW ID) | 9000051 | ||||||
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2518509
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001508
Version
Language
Size
0,2 MB
Other Documents
Ordering data
| Ordernumber | 171767 |
| Item designation | MSM-1-P-CA-Q0P2P0-M1-171767 |
| Gross weight | 0,1kg |
| Customs tariff number | 85371098 |
| ECLASS | 27-24-26-05 Field bus, decentralized peripheral - function-/technology module |
