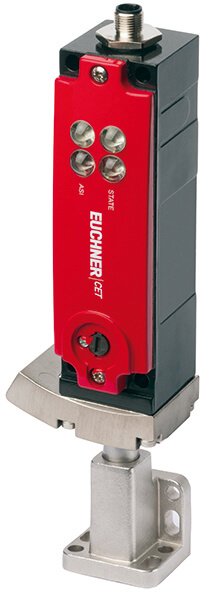

Safety switch CET-AS
Your advantages
- Integrated AS-i connection
- Robust metal housing
- Suitable for heavy doors
- High level of protection against tampering
- High degree of protection IP67
- Detailed diagnostics with four LEDs (ASi/STATE, 2 colors each)
Design and principle of operation
The CET...AS can be operated directly on the AS-i bus and provides the control system with both the door position and information about the locking position. Information about a possible malfunction in the switch can also be diagnosed directly in the control system. Operation on all known AS-i safety monitors in the proven manner is a matter of course. It is possible to change from an electromechanical safety switch to the CET in PL e without modifying the software on the monitor.
Product finder
Quick search
Guard locking principle
Lockout mechanism
Connection
Products (6)
No results found
165486
CET3-AS-CRA-AB-50X-1-C2290-165486
Safety switch CET-AS – with AS-i connection, closed-circuit current principle, with wire front release (bowden) 4 m
CET3-AS-CRA-AB-50X-1-C2290-165486
Safety switch CET-AS – with AS-i connection, closed-circuit current principle, with wire front release (bowden) 4 m
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Wire front release (bowden), automatic return, rope length 4 m
- Approach direction A (delivery state)
111214
CET3-AS-CRA-AB-50X-SJ-AS1-111214
Safety switch CET-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
CET3-AS-CRA-AB-50X-SJ-AS1-111214
Safety switch CET-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach direction A (delivery state)
116514
CET3-AS-CRA-CB-50X-1-116514
Safety switch CET-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
CET3-AS-CRA-CB-50X-1-116514
Safety switch CET-AS – with AS-i connection, plug connector M12 (closed-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Multicode
- Approach direction A (delivery state)
113631
CET4-AS-CRA-AB-50X-SJ-AS1-113631
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CET4-AS-CRA-AB-50X-SJ-AS1-113631
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach direction A (delivery state)
116515
CET4-AS-CRA-CB-50X-1-116515
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CET4-AS-CRA-CB-50X-1-116515
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Multicode
- Approach direction A (delivery state)
120008
CET4-AS-CRB-AB-50X-1-120008
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
CET4-AS-CRB-AB-50X-1-120008
Safety switch CET-AS – with AS-i connection, plug connector M12 (open-circuit current principle)
- Safety switch with guard locking and integrated evaluation electronics
- Locking force up to 6,500 N
- Category 4 / PL e according to EN ISO 13849-1
- Unicode
- Approach direction B (delivery state)
