MGB2-L2-MLI-M-YF6G2-CA-R-165519 (Sip. No. 165519)

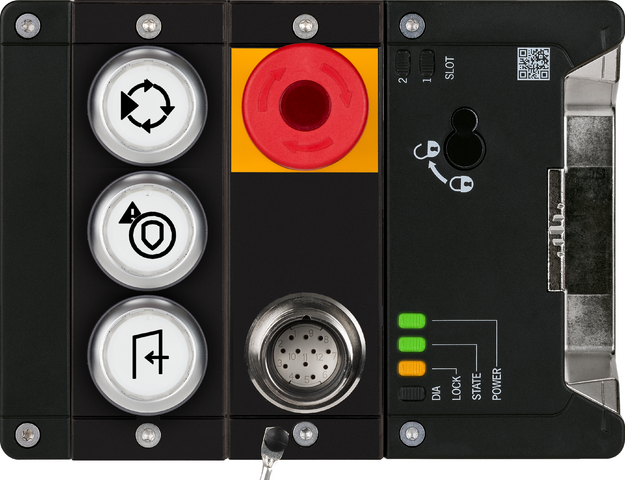

Zuhaltemodul MGB2-L2-MLI... (3 Drucktaster, Not-Halt, Steckverbinder M23 für den Anschluss eines Zustimmtasters, Arbeitsstromprinzip, Türanschlag rechts)

MGB2-L2-MLI-M-YF6G2-CA-R-165519 (Sip. No. 165519)

Açıklama

Zuhaltungsart

MGB2-L2...

Zuhaltung durch Magnetkraft. Aktivierung der Zuhaltung durch Anlegen von Spannung am Zuhaltemagnet. (Arbeitsstromprinzip)

Türanschlag

Der Türanschlag kann bei den Zuhaltemodulen jederzeit mit geringem Aufwand von rechts auf links und umgekehrt umgestellt werden.

Multicode-Auswertung

Jeder geeignete Betätiger wird vom Schalter erkannt.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Teknik Veriler

Approvals

c_UL_us_E155795_3/9TÜV Süd München_Z10 040393 0028 Rev.04EAC_RU C-DE.HX37.B.14157/20FCC_2AJ58-02_

Mechanical values and environment

Installation orientation Door hinge DIN right

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated voltage 36 V
Rated voltage 30 V
Nominal current
at 40 °C 4 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Ambient temperature -30 ... +55 °C
Connection 1
Connection type 2x M4 screws
Connection type Male plug
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic
Connection 2
Connection type Screw terminal
Connection type Male plug
Type specification M12 EN 61076-2-101 / A-coded
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic, die-cast zinc, nickel plated
Plug lock die-cast zinc, nickel plated

Locking modules MGB2-L2-MLI-M-Y0000-BJ-158711 (Order no. 158711)

Locking modules MGB2-L2-MLI-M-Y0000-BJ-158711 (Order no. 158711)

Electrical connection values

Rated insulation voltage Ui 75 V
Rated impulse withstand voltage Uimp 0.5 kV
EMC protection requirements EMC Directive 2014/30/EU
Safety class III
Current consumption max. 350 mA
Transponder coding Multicode
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Switching frequency 0.25 Hz
Mechanical life
when used as a door hinge and 2 joules of impact energy 0.1 x 10⁶
in case of use as door stop, and 1 Joule impact energy 0.2 x 10⁶
Total 1 x 10⁶
Response time See operating instructions for bus module MBM-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted; assembly.)
Ambient temperature
with UB = 24 V DC -30 ... +55 °C
Material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated
Locking force FZh 2000 N
Guard locking principle Open-circuit current principle

Submodules MSM-1-S-CA-B000SL-F6-164620 (Order no. 164620)

Submodules MSM-1-S-CA-B000SL-F6-164620 (Order no. 164620)

Operating and display elements

ItemColorExtrasVersionSwitching elementSlide-in labelNote slide-in labelNumberDesignation1LED
S94Illuminated emergency stop2 PD
X14Connection M23x1 for enabling switch

Electrical connection values

Current consumption max. 60 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (When installed)
Ambient temperature
with UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic, brass, nickel plated

Submodules MSM-1-S-CA-P0R0P0-G2-164758 (Order no. 164758)

Submodules MSM-1-S-CA-P0R0P0-G2-164758 (Order no. 164758)

Operating and display elements

ItemColorExtrasVersionSwitching elementSlide-in labelNote slide-in labelNumberDesignation1LED
S90whiteprintedIlluminated pushbutton1NO
S91whiteprintedIlluminated acknowledgment button2NORGB
S92whiteprintedIlluminated pushbutton1NOBlue

Electrical connection values

Current consumption max. 32 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (When installed)
Ambient temperature
with UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Software ID (SW ID) 9900002

AC-MC-00-0-B-156718 (Order no. 156718)

AC-MC-00-0-B-156718 (Order no. 156718)

Electrical connection values

Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Ambient temperature -30 ... +55 °C
Material Fiber glass reinforced plastic
Connection 1
Connection type 2x M4 screws
Degree of protection IP65 (Only in the screwed tight state with the specified base units.)

Miscellaneous

Color black
Additional feature
incl. fixing screws
incl. seal

Bileşenler

AC-MC-SB-M-A-157024
157024
AC-MC-SB-M-A-157024
Module connector MLI (M12), 5-pin, plug
  • Module plug connector MLI (M12), straight
  • Number of pins: 5-pin, plug
MGB2-L2-MLI-M-Y0000-BJ-158711
158711
MGB2-L2-MLI-M-Y0000-BJ-158711
Locking module MGB2-L2-MLI... (module without blanking covers, open-circuit current principle)
  • Guard locking for the protection of persons or processes
  • Locking module MGB2 for connection to a bus module MBM
  • Interlocking with monitored guard locking
  • Category 4/PL e for the evaluation of all safety functions
  • Open version (without blanking covers)
  • Adjustable door hinge
  • Multicode
  • Compatible with all Modular devices
MSM-1-S-CA-B000SL-F6-164620
164620
MSM-1-S-CA-B000SL-F6-164620
Submodule MSM-1-S... (illuminated emergency stop, M23 plug connector for enabling switch)
  • Function expansion for modules MGB2 and MCM
  • Connection type: S
  • 1 illuminated emergency stop according to ISO 13850
  • 1 plug connector M23 for connecting an enabling switch
MSM-1-S-CA-P0R0P0-G2-164758
164758
MSM-1-S-CA-P0R0P0-G2-164758
Submodule MSM-1-S... (2 illuminated white pushbuttons with symbol, 1 illuminated white acknowledgment button with symbol)
  • Function expansion for modules MGB2 and MCM
  • Connection type: S
  • 1 white pushbutton, illuminated with symbol
  • 1 white acknowledgement button, LED RGB illuminated with symbol
  • 1 white pushbutton, LED illuminated BLUE with symbol
AC-MC-00-0-B-156718
156718
AC-MC-00-0-B-156718
Cover for unused module connections
  • Cover for unused connections
  • incl. fixing screws
  • incl. seal

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 34,0 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 165519
Makale adı MGB2-L2-MLI-M-YF6G2-CA-R-165519
Ağırlık 2,85kg
Gümrük sınıfı 85371098
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
