MGB2-L1HEC-MLI-U-GA-L-172046 (Sip. No. 172046)

Locking set with expansion module MGB2-L1HEC... (emergency stop, 7 pushbuttons, M23 plug connector for enabling switch, closed-circuit current principle, door hinge on left)

  • Guard locking with guard lock monitoring
  • 1 illuminated emergency stop according to ISO 13850
  • 7 illuminated pushbuttons with symbol
  • M23 plug connector for enabling switch
  • Adjustable door hinge; factory setting: left
  • 7 cut-outs for slide-in label
  • Escape release with knob
  • Unicode
  • For connection to any bus module MBM
MGB2-L1HEC-MLI-U-GA-L-172046 (Sip. No. 172046)

Açıklama

Guard locking type

MGB2-L1...

Guard locking by spring force. Release by applying voltage to the guard locking solenoid. (closed-circuit current principle)

Flexible connection to any bus module MBM

The locking set can be connected to any bus module MBM, making it the ideal choice for supplementing or expanding existing systems.

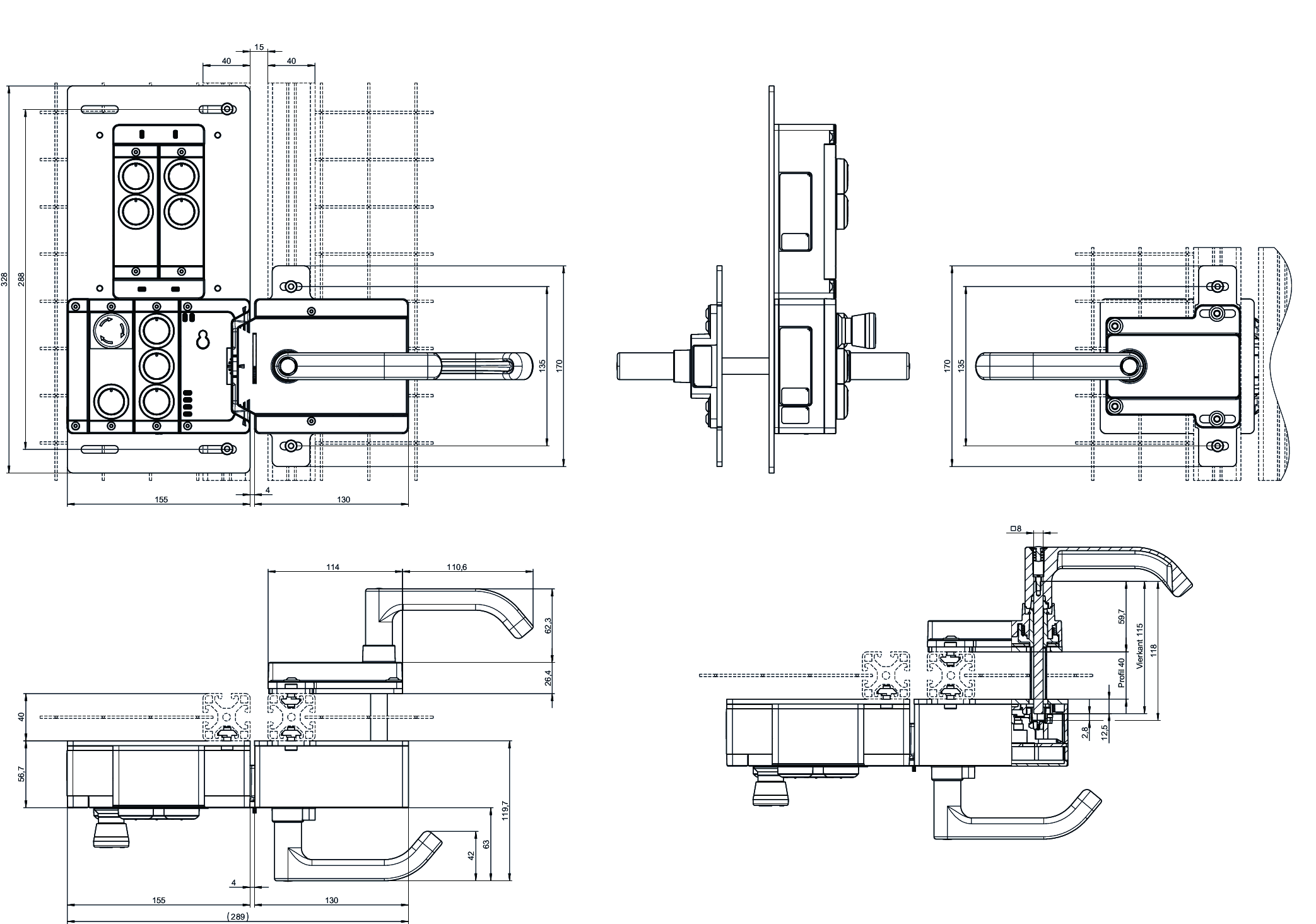

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Teknik Veriler

Approvals

c_UL_us_E155795_3/9EAC_RU C-DE.HX37.B.14157/20FCC_2AJ58-02_

Escape release MGB-E-A8-126320 (Order no. 126320)

Escape release MGB-E-A8-126320 (Order no. 126320)

Mechanical values and environment

Installation orientation any
Mechanical life 1 x 10⁶
Ambient temperature -30 ... 55 °C
Material
Housing Die-cast zinc/stainless steel, powder-coated

Miscellaneous

Product version number V2.0.0
Additional feature
with mounting plate
with knob (red)

Handle modules MGB2-H-BA1A6-L-157371 (Order no. 157371)

Handle modules MGB2-H-BA1A6-L-157371 (Order no. 157371)

Mechanical values and environment

Installation orientation Door hinge DIN left
Degree of protection IP65
Ambient temperature -30 ... 55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Additional feature
with mounting plate
with automatic lockout mechanism

Sets MGB2-L1C-MLI-U-GA-L-172164 (Order no. 172164)

Sets MGB2-L1C-MLI-U-GA-L-172164 (Order no. 172164)

Mounting accessories AM-P-LC-169222

Mounting accessories AM-P-LC-169222

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Steel, powder coated

Miscellaneous

Color black
Compatibility For devices MGB2-L and MCM
Additional feature incl. fixing material for the modules on the mounting plate

Modules MGB2-L1-MLI-U-YA7L6-CA-L-172168

Modules MGB2-L1-MLI-U-YA7L6-CA-L-172168

Mechanical values and environment

Installation orientation Door hinge DIN left

Submodules MSM-1-R-DA-00N-A7-137597 (Order no. 137597)

Submodules MSM-1-R-DA-00N-A7-137597 (Order no. 137597)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
3Connection M23x1 for enabling switch

Electrical connection values

Current consumption max. 48 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic, brass, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Evaluating safety signalsPL e-9.06x10-10420 y
Only applies to externally connected safety functions such as enabling switches, safety switches, etc.


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 137597

Locking modules MGB2-L1-MLI-U-Y0000-BJ-136776 (Order no. 136776)

Locking modules MGB2-L1-MLI-U-Y0000-BJ-136776 (Order no. 136776)

Electrical connection values

Rated insulation voltage Ui 75 V
Rated impulse voltage Uimp 0.5 kV
EMC protection requirements EMC Directive 2014/30/EU
Safety class III
Current consumption max. 350 mA
Transponder coding Unicode
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Switching frequency 0.25 Hz
Storage temperature -30 ... 70 °C
Mechanical life
in case of use as door stop, and 1 Joule impact energy 0.2 x 10⁶
in case of use as door stop, and 2 Joule impact energy 0.1 x 10⁶
Total 1 x 10⁶
Response time See operating instructions for bus module MBM-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.)
Ambient temperature
at UB = 24 V DC -30 ... 55 °C
Material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated
Locking force FZh 2000 N
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Control of guard lockingPL e32.62x10-9420 y
Monitoring of the guard positionPL e32.62x10-9420 y
Monitoring of guard lockingPL e32.62x10-9420 y
Evaluating safety signalsPL e32.62x10-9420 y
Applies to all safety functions contained in submodules such as EMERGENCY STOP, enabling switch, etc.


Miscellaneous

Slotkonfiguration 1,1

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated voltage 36 V
Rated voltage 30 V
Nominal current
at 40 °C 4 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Connection 1
Connection type 2x M4 screws
Connection type Male plug
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic
Connection 2
Connection type Screw terminal
Connection type Male plug
Type specification M12 EN 61076-2-101 / A-coded
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug lock die-cast zinc, nickel plated
Plug housing Plastic, die-cast zinc, nickel plated

AC-MC-00-0-B-156718 (Order no. 156718)

AC-MC-00-0-B-156718 (Order no. 156718)

Electrical connection values

Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Material Fiber glass reinforced plastic
Connection 1
Connection type 2x M4 screws
Degree of protection IP65 (Only in the screwed tight state with the specified base units.)

Miscellaneous

Color black
Additional feature
incl. fixing screws
incl. seal

Submodules MSM-1-P-CA-B0Q0P0-L6-171759 (Order no. 171759)

Submodules MSM-1-P-CA-B0Q0P0-L6-171759 (Order no. 171759)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
1Illuminated emergency stop2 PD
217.5x27 mmPosition for slide-in label1
3printedIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 22 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.13x10620 y


Miscellaneous

Submodulbreite 1
Slide-in label
NumberLabelingNote
1without marking
Software ID (SW ID) 9000053

Function expansion MCM-MLI-YM2L5M3L5-KA-172170

Function expansion MCM-MLI-YM2L5M3L5-KA-172170

Mechanical values and environment

Storage temperature -25 ... 70 °C

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated voltage 36 V
Rated voltage 30 V
Nominal current
at 40 °C 4 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Connection 1
Connection type 2x M4 screws
Connection type Male plug
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic
Connection 2
Connection type Screw terminal
Connection type Male plug
Type specification M12 EN 61076-2-101 / A-coded
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug lock die-cast zinc, nickel plated
Plug housing Plastic, die-cast zinc, nickel plated

Control modules MCM-MLI-Y00000000-JJ-157854 (Order no. 157854)

Control modules MCM-MLI-Y00000000-JJ-157854 (Order no. 157854)

Electrical connection values

Rated insulation voltage Ui 75 V
Rated impulse voltage Uimp 0.5 kV
EMC protection requirements EMC Directive 2014/30/EU
Safety class III
Current consumption max. 75 mA
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Switching frequency 0.25 Hz
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Evaluating safety signalsPL e32.82x10-9420 y
Applies to all safety functions contained in submodules such as EMERGENCY STOP, enabling switch, etc.


Miscellaneous

Slotkonfiguration 1,1,1,1

AC-MC-00-0-B-156718 (Order no. 156718)

AC-MC-00-0-B-156718 (Order no. 156718)

Electrical connection values

Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Material Fiber glass reinforced plastic
Connection 1
Connection type 2x M4 screws
Degree of protection IP65 (Only in the screwed tight state with the specified base units.)

Miscellaneous

Color black
Additional feature
incl. fixing screws
incl. seal

Submodules MSM-1-N-AA-QQQ-L5-171757 (Order no. 171757)

Submodules MSM-1-N-AA-QQQ-L5-171757 (Order no. 171757)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
1Position for slide-in label
2Position for slide-in label
3Position for slide-in label

Mechanical values and environment

Installation orientation any
Storage temperature -30 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Ambient temperature
at UB = 24 V DC -30 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Slide-in label
NumberLabelingNote
3without marking

Submodules MSM-1-P-CA-PPP-M2-172041 (Order no. 172041)

Submodules MSM-1-P-CA-PPP-M2-172041 (Order no. 172041)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
1blueprintedIlluminated pushbutton1NO
2greenprintedIlluminated pushbutton1NO
3blackprintedIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 30 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000003

Submodules MSM-1-P-CA-PPP-M3-172054 (Order no. 172054)

Submodules MSM-1-P-CA-PPP-M3-172054 (Order no. 172054)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
1whiteprintedIlluminated pushbutton1NO
2grayprintedIlluminated pushbutton1NO
3whiteprintedIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 30 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000003

Bileşenler

MGB-E-A8-126320
126320
MGB-E-A8-126320
Escape release module MGB-E... pre-assembled on mounting plate
  • Escape release from the danger zone
  • Mounted on mounting plate
  • Signal red door knob
  • Designed for door profiles up to 40 mm
  • Extended actuation axis for thicker doors (available optionally)
MGB2-H-BA1A6-L-157371
157371
MGB2-H-BA1A6-L-157371
Handle module MGB2-H... (door handle, with automatic lockout mechanism, door hinge on left)
  • Intelligent bolt tongue
  • Fold-out lockout mechanism
  • Second automatically extending lockout mechanism
  • Door handle
  • Mounting plate
  • Adjustable door hinge; factory setting: left
MGB2-L1C-MLI-U-GA-L-172164
172164
MGB2-L1C-MLI-U-GA-L-172164
Locking module and expansion module MGB2-L1C-MLI... (emergency stop, 7 pushbuttons, M23 plug connector for enabling switch, closed-circuit current principle, door hinge on right)
  • Guard locking for the protection of persons or processes
  • Locking module MGB2 for connection to a bus module MBM
  • Interlocking with monitored guard locking
  • Category 4/PL e for the evaluation of all safety functions
  • 1 illuminated emergency stop according to ISO 13850
  • 7 illuminated pushbuttons with symbol
  • M23 plug connector for enabling switch
  • 7 cut-outs for slide-in label
  • Adjustable door hinge; factory setting: left
  • Unicode
  • Compatible with all Modular devices

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 41,6 MB)

Tek Belgeler

Dok. No.
Versiyon
Dil
Boyut
Dok. No. 2150206
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2150206
Versiyon
04
Dil
Boyut
0,3 MB
Dok. No. 2152694
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2152694
Versiyon
06
Dil
Boyut
0,2 MB
Dok. No. 2153618
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2153618
Versiyon
01
Dil
Boyut
0,4 MB
Dok. No. 2116924
Data sheet
Fiche technique
Ficha de datos
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2116924
Versiyon
02
Dil
Boyut
0,1 MB
Dok. No. 2154448
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2154448
Versiyon
01
Dil
Boyut
0,1 MB
Dok. No. 2154438
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2154438
Versiyon
02
Dil
Boyut
0,3 MB
Dok. No. 2154437
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2154437
Versiyon
02
Dil
Boyut
0,2 MB
Dok. No. 2150867
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2150867
Versiyon
09
Dil
Boyut
0,3 MB
Dok. No. 2150521
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2150521
Versiyon
02
Dil
Boyut
0,1 MB
Dok. No. 2150530
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Dok. No.
2150530
Versiyon
01
Dil
Boyut
0,2 MB

Diğer Belgeler

Sipariş verileri

Sip. No. 172046
Makale adı MGB2-L1HEC-MLI-U-GA-L-172046
Ağırlık 7,77kg
Gümrük sınıfı 85371098
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
