MGB2-L1HB-EC-U-S7-CA-R-175498 (Sip. No. 175498)

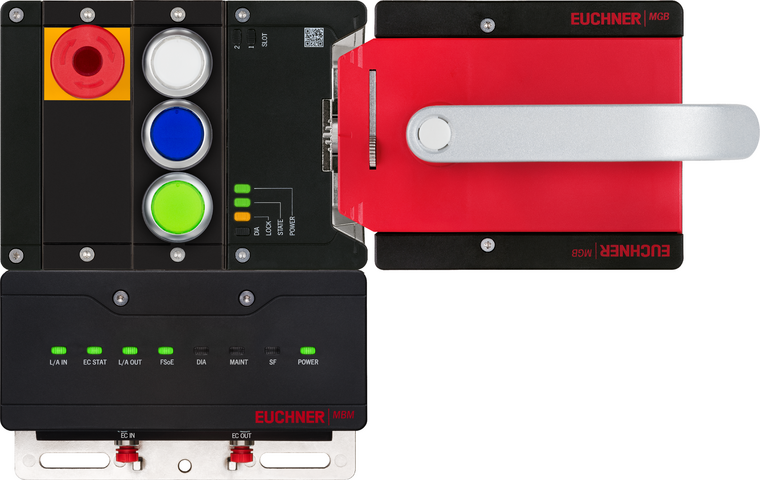

Complete set MGB2-L1...-EC (3 illuminated pushbuttons, EMERGENCY STOP, closed-circuit current principle, door hinge right)

  • Guard locking with guard lock monitoring
  • Illuminated emergency stop according to ISO 13850
  • 3 illuminated pushbuttons
  • Connection via plug connector M8, P-coded
  • Integrated switch
  • Adjustable door hinge; factory setting: right
  • Unicode
MGB2-L1HB-EC-U-S7-CA-R-175498 (Sip. No. 175498)

Açıklama

Guard locking type

MGB2-L1...

Guard locking by spring force. Release by applying voltage to the guard locking solenoid. (closed-circuit current principle)

EtherCAT connection

Plug connector M8, 4-pin, for EtherCAT P

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Teknik Veriler

Approvals

c_UL_us_E155795_3/9EAC_RU C-DE.HX37.B.14157/20

Handle modules MGB2-H-BA1A1-R-137617 (Order no. 137617)

Handle modules MGB2-H-BA1A1-R-137617 (Order no. 137617)

Mechanical values and environment

Installation orientation Door hinge DIN right
Degree of protection IP65
Ambient temperature -30 ... +55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Bus modules MBM-EC-S7-MLI-3B-163293 (Order no. 163293)

Bus modules MBM-EC-S7-MLI-3B-163293 (Order no. 163293)

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated insulation voltage Ui 75 V
Rated impulse voltage Uimp 0.5 kV
EMC protection requirements EMC Directive 2014/30/EU
maximum feed-in current in the connection block
X1, X2 max. 3000 mA
Safety class III
Current consumption max. 200 mA
Degree of contamination (external, according to EN 60947-1) 3
Power supply X1, X2
Fuse
external min. 1 A slow blow
Operating voltage DC
US 24 V DC -15% ... +20% ((reverse polarity protected, regulated, residual ripple<5%, PELV))
Auxiliary voltage DC
UP 24 V DC -15% ... +20% (The auxiliary voltage is not required for the MGB system)

Mechanical values and environment

Connection type
according to IEC 61076-2-104 M8, 4-pin, EtherCAT P-coded (EC IN)
according to IEC 61076-2-104, Profinet I/O cable, at least cat. 5e M8, 4-pin, EtherCAT P-coded (EC OUT)
Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted; assembly.)
Ambient temperature
with UB = 24 V DC -25 ... +55 °C
Material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated
ML1C / ML2C
Connection type Screw terminal
Connection type Male plug
Type specification M12 EN 61076-2-101 / A-coded
Number of pins 5
Insertion cycles 100
ML1D
Connection type Connector (unlocked)
Connection type Male plug
Number of pins 5
Insertion cycles 100

Interface

Bus data protocol EtherCAT (IEC 61158 type 12)
Safety data protocol FSoE (IEC 61784-3-12)
Date interface
Ethernet

Locking modules MGB2-L1-MLI-U-YQ7C8-CA-R-175500 (Order no. 175500)

Locking modules MGB2-L1-MLI-U-YQ7C8-CA-R-175500 (Order no. 175500)

Mechanical values and environment

Installation orientation Door hinge DIN right

Bileşenler

MGB2-H-BA1A1-R-137617
137617
MGB2-H-BA1A1-R-137617
Handle module MGB2-H... (door handle, door hinge on right)
  • Intelligent bolt tongue
  • Fold-out lockout mechanism
  • Door handle
  • Adjustable door hinge; factory setting: right
MBM-EC-S7-MLI-3B-163293
163293
MBM-EC-S7-MLI-3B-163293
Bus module MBM-EC... (M8 connection, P-coded)
  • For connecting MGB2 or MCM modules
  • Connection to EtherCAT
  • Connection via plug connector M8, P-coded
  • Remote or direct mounting
  • Integrated switch
  • Compatible with all Modular devices

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 41,8 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 175498
Makale adı MGB2-L1HB-EC-U-S7-CA-R-175498
Ağırlık 3,855kg
Gümrük sınıfı 85371098
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
