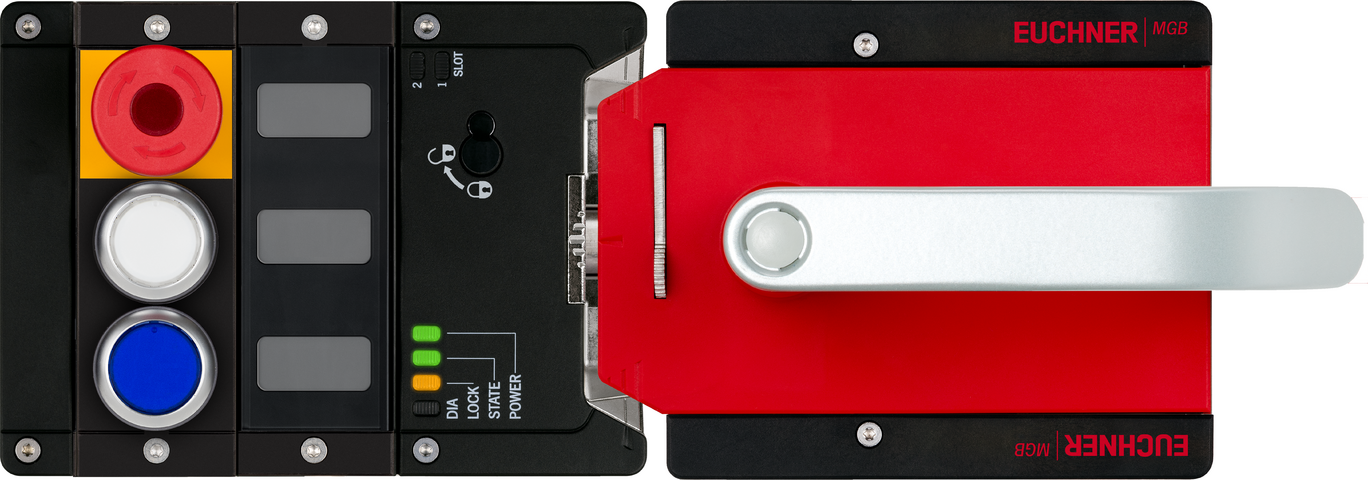

MGB2-L1H-MLI-U-MA-R-175568 (Sip. No. 175568)

Choose content Açıklama Boyut çizimleri Teknik Veriler Bileşenler Aksesuar İndirme bağlantısı Sipariş verileri

Zuhalteset MGB2-L1... (2 Drucktaster, Not-Halt, Ruhestromprinzip, Türanschlag rechts)

MGB2-L1H-MLI-U-MA-R-175568 (Sip. No. 175568)

Açıklama

Zuhaltungsart

MGB2-L1...

Zuhaltung durch Federkraft.
Entriegelung durch Anlegen von Spannung am Zuhaltemagnet. (Ruhestromprinzip)

Flexible Anbindung an ein beliebiges Busmodul MBM

Das Zuhalteset kann an ein beliebiges Busmodul MBM angeschlossen werden und ist somit ideal für die Ergänzung oder Erweiterung bereits vorhandener Systeme.

Abgesetzte Montage

Bei beengten Platzverhältnissen kann das Busmodul an das Zuhalteset abgesetzt montiert werden.

Dimension drawing

Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Teknik Veriler

Approvals

EAC_RU C-DE.HX37.B.14157/20

Handle modules MGB2-H-BA1A3-R-136691 (Order no. 136691)

Handle modules MGB2-H-BA1A3-R-136691 (Order no. 136691)

Mechanical values and environment

Installation orientation	Door hinge DIN right
Degree of protection	IP65
Ambient temperature	-30 ... +55 °C
Material
Housing	Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Additional feature

with automatic lockout mechanism

Mechanical values and environment

Installation orientation

Door hinge DIN right

Bileşenler

MGB2-H-BA1A3-R-136691

136691
MGB2-H-BA1A3-R-136691
Handle module MGB2-H... (door handle, with automatic lockout mechanism, door hinge on right)

Intelligent bolt tongue
Fold-out lockout mechanism
Second automatically extending lockout mechanism
Door handle
Adjustable door hinge; factory setting: right

Aksesuar

Connection material

Connecting cable with 2 plug connectors M12, 5-pin, 0.22 m, AIDA standard

C-M12F05-05X034PU0,22-M12M05-163573

163573
C-M12F05-05X034PU0,22-M12M05-163573

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 0.22 m

Connecting cable with 2 plug connectors M12, 5-pin, 1.5 m, AIDA standard

C-M12F05-05X034PU01,5-M12M05-159356

159356
C-M12F05-05X034PU01,5-M12M05-159356

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 1.5 m

C-M12F05-05X034PU01,5-M12M05-159363

159363
C-M12F05-05X034PU01,5-M12M05-159363

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 1.5 m

Connecting cable with 2 plug connectors M12, 5-pin, 10 m

C-M12F05-05X034PU10,0-M12M05-119947

119947
C-M12F05-05X034PU10,0-M12M05-119947

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
PUR cable
Cable length 10 m

Connecting cable with 2 plug connectors M12, 5-pin, 10 m, AIDA standard

C-M12F05-05X034PU10,0-M12M05-159360

159360
C-M12F05-05X034PU10,0-M12M05-159360

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 10 m

C-M12F05-05X034PU10,0-M12M05-159920

159920
C-M12F05-05X034PU10,0-M12M05-159920

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 10 m

Connecting cable with 2 plug connectors M12, 5-pin, 15 m, AIDA standard

C-M12F05-05X034PU15,0-M12M05-159361

159361
C-M12F05-05X034PU15,0-M12M05-159361

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 15 m

C-M12F05-05X034PU15,0-M12M05-159921

159921
C-M12F05-05X034PU15,0-M12M05-159921

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 15 m

Connecting cable with 2 plug connectors M12, 5-pin, 1 m, AIDA standard

C-M12F05-05X034PU01,0-M12M05-159355

159355
C-M12F05-05X034PU01,0-M12M05-159355

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 1 m

C-M12F05-05X034PU01,0-M12M05-159362

159362
C-M12F05-05X034PU01,0-M12M05-159362

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 1 m

Connecting cable with 2 plug connectors M12, 5-pin, 20 m

C-M12F05-05X034PU20,0-M12M05-119971

119971
C-M12F05-05X034PU20,0-M12M05-119971

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
PUR cable
Cable length 20 m

Connecting cable with 2 plug connectors M12, 5-pin, 3 m, AIDA standard

C-M12F05-05X034PU03,0-M12M05-159357

159357
C-M12F05-05X034PU03,0-M12M05-159357

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 3 m

C-M12F05-05X034PU03,0-M12M05-159364

159364
C-M12F05-05X034PU03,0-M12M05-159364

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 3 m

Connecting cable with 2 plug connectors M12, 5-pin, 5 m

C-M12F05-05X034PU05,0-M12M05-119932

119932
C-M12F05-05X034PU05,0-M12M05-119932

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
PUR cable
Cable length 5 m

Connecting cable with 2 plug connectors M12, 5-pin, 5 m, AIDA standard

C-M12F05-05X034PU05,0-M12M05-159358

159358
C-M12F05-05X034PU05,0-M12M05-159358

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 5 m

C-M12F05-05X034PU05,0-M12M05-159365

159365
C-M12F05-05X034PU05,0-M12M05-159365

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 5 m

Connecting cable with 2 plug connectors M12, 5-pin, 8 m, AIDA standard

C-M12F05-05X034PU08,0-M12M05-159359

159359
C-M12F05-05X034PU08,0-M12M05-159359

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color gray
Cable length 8 m

C-M12F05-05X034PU08,0-M12M05-159919

159919
C-M12F05-05X034PU08,0-M12M05-159919

M12 female plug to M12 plug connector, 5-pin
Straight female plug and plug connector
Connecting cable according to AIDA standard
PUR cable, sheath color yellow
Cable length 8 m

Module connector MLI (M12), 5-pin, socket

AC-MC-SB-F-A-157028

157028
AC-MC-SB-F-A-157028

Module plug connector MLI (M12), straight
with thread
Number of pins: 5-pin, socket

Module connector MLI, 5-pin, socket

AC-MC-SB-F-B-157025

157025
AC-MC-SB-F-B-157025

Module plug connector MLI, straight
Directly pluggable (without thread)
Number of pins: 5-pin, socket

Function expansion

Emergency release for safety switch CTP/CTA/TP/STP/MGB2

099877
AE-M-A1-99877

Escape release MGB-E-A...

100465
MGB-E-A-100465

Escape release from the danger zone
Signal red door handle
Designed for door profiles up to 40 mm
Extended actuation axis for thicker doors (available optionally)

MGB-E-A4-163885

163885
MGB-E-A4-163885

Escape release from the danger zone
Signal red door handle
Designed for door profiles up to 45 mm
Extended actuation axis for thicker doors (available optionally)

Escape release MGB-E-A7...

MGB-E-A7-117126

117126
MGB-E-A7-117126

Escape release from the danger zone
Signal red door knob
Designed for door profiles up to 40 mm
Extended actuation axis for thicker doors (available optionally)

Escape release module MGB-E... pre-assembled on mounting plate

MGB-E-A2-106051

106051
MGB-E-A2-106051

Escape release from the danger zone
Mounted on mounting plate
Signal red door handle
Designed for door profiles up to 40 mm
Extended actuation axis for thicker doors (available optionally)

MGB-E-A8-126320

126320
MGB-E-A8-126320

Escape release from the danger zone
Mounted on mounting plate
Signal red door knob
Designed for door profiles up to 40 mm
Extended actuation axis for thicker doors (available optionally)

Holder for insertion plates for the MGB2 locking module

AY-SET-CVR-173814

173814
AY-SET-CVR-173814

For locking/locking module MGB2-.-MLI
incl. 3 insert labels unlabeled

Lock for auxiliary release for safety switch CTP/CTA/TP/STP

AE-K-A1-DULK1-84177

084177
AE-K-A1-DULK1-84177

Lock unique locking
Key removable in “unlocked” and “locked” positions

AE-K-A1-IULK1-86236

086236
AE-K-A1-IULK1-86236

Identical locking
Key removable in “unlocked” and “locked” positions

AE-K-A1-IUK2-109212

109212
AE-K-A1-IUK2-109212

Identical locking
Key can be removed only in “unlocked” position

AE-K-A1-ILK1-121917

121917
AE-K-A1-ILK1-121917

Identical locking
Key removable in “locked” position

Release with automatic reset for safety switch CTP/CTA/TP/STP/MGB2/MGBS

103110
AE-R-A1-103110

Adhesive labels

114529
MGB-A-PLATESET-NN01-114529

Adhesive labels suitable for MGB evaluation modules, bus modules and control modules
silver, blank
Packaging unit = 10 pcs.

Cover for locking module MGB2-L.-MLI with auxiliary release

156734
MGB2-A-C-L-MLI-156734

Cover for locking module MGB2-L.-MLI
For modules with auxiliary release on the front
incl. screw set

Lens set labeled

AY-SET-LNS-SY01-120377

120377
AY-SET-LNS-SY01-120377

AY-SET-LNS-SY03-126158

126158
AY-SET-LNS-SY03-126158

AY-SET-LNS-SY02-125359

125359
AY-SET-LNS-SY02-125359

AY-SET-LNS-SY04-158307

158307
AY-SET-LNS-SY04-158307

AY-SET-LNS-SY05-160049

160049
AY-SET-LNS-SY05-160049

Lens set, 5 colors

AY-SET-LNS-0001-120344

120344
AY-SET-LNS-0001-120344

AY-SET-LNS-0003-163284

163284
AY-SET-LNS-0003-163284

Lens set, 6 colors

AY-SET-LNS-0002-120378

120378
AY-SET-LNS-0002-120378

Set of seal labels

155853
AY-SAR-V10-155853

Seal labels for MGB2 auxiliary release
Color: black
Packaging unit 10 pcs.

Mounting accessories

Mounting plate for evaluation modules MGB2-L/I

161315
AM-P-L-161315

For evaluation modules MGB2-L/I
Easy and quick mounting (only two screws required)
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
Incl. screw set

Mounting plate for handle module MGB2-H...

156683
AM-P-H-156683

For handle module MGB2-H
Easy and quick mounting
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
incl. screw set

173089
AM-P-H-173089

For handle module MGB2-H
Easy and quick mounting
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
incl. screw set

Mounting plate for modules MGB2-L..., MCM... and MBM...

156680
AM-P-LCB-156680

For modules MGB2-L, MBM and MCM
Easy and quick mounting
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
incl. screw set

Mounting plate for modules MGB2-L/I and MCM-MLI

169222
AM-P-LC-169222

For modules MGB2-L/I and MCM-MLI
Easy and quick mounting
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
incl. screw set

Mounting plate for modules MGB2-L/I... and MBM...

156682
AM-P-LB-156682

For modules MGB2-L and MBM
Easy and quick mounting
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
incl. screw set

Mounting plates for evaluation modules MGB2-L

173091
AM-P-L-173091

For evaluation modules MGB2-L
Easy and quick mounting (only two screws required)
Quick module replacement
Steel, powder coated
Suitable for doors hinged on the right and left
Incl. screw set

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
Kullanım talimatlarını tamamlayan tüm veri sayfaları
Uygunluk beyanı

Paketin tamamını indirin (ZIP, 33,5 MB)

Tek Belgeler

Dok. No.

Versiyon

Dil

Boyut

Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データシート
데이터 시트
Datový list

Declarations of conformity

EU-Konformitätserklärung

Dok. No.

Versiyon

Dil

Boyut

EU-Konformitätserklärung

UKCA-Konformitätserklärung

Dok. No.

Versiyon

Dil

Boyut

UKCA-Konformitätserklärung

Operating Instructions Interlocking/Locking Modules MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

Dok. No.

Versiyon

Dil

Boyut

Operating Instructions Interlocking/Locking Modules MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

Mode d’emploi Modules de verrouillage / interverrouillage MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

Manual de instrucciones Módulos de enclavamiento o bloqueo MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

Betriebsanleitung Verriegelungs-/Zuhaltemodule MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

使用说明书互锁/锁止模块 MGB2-I..-MLI-.../ MGB2-L..-MLI-...(Modular)

사용 설명서 연동/잠금 모듈 MGB2-I..-MLI-... / MGB2-L..-MLI-... (모듈형)

Návod k použití Blokovací moduly / vyhodnocovací moduly s jištěním ochranného krytu MGB2-I..-MLI-... / MGB2-L..-MLI-... (Modular)

Használati utasítás Reteszelő- /zárvatartó modul MGB2-I..-MLI-... / MGB2-L..-MLI-... (moduláris)

Safety information

Dok. No.

Versiyon

Dil

Boyut

Safety information
Information de sécurité
Información de seguridad
Sicherheitsinformation
Informação de segurança
Informazioni sulla sicurezza
Bezpečnostní informace
Biztonsági információ
Информация за безопасност
Sikkerhedsinformation
Ohutusalane teave
Turvallisuustiedot
Πληροφορία ασφαλείας
Sigurnosne informacije
Informācija par drošību
Saugos informacija
Veiligheidsinformatie
Sikkerhetsinformasjon
Informacje o bezpieczeństwie
Säkerhetsinformation
Varnostne informacije
Bezpečnostné informácie
Güvenlik bilgisi
Informații privind siguranța

Diğer Belgeler

Approvals and certificates

Dok. No.

Versiyon

Dil

Boyut

Approval
Homologation
Homologación
EAC
Homologação
Omologazione
认证
認可
승인
Сертификат
Atest
Engedély
Разрешително
Godkendelse
Heakskiit
Hyväksyntä
Έγκριση
Odobrenje
Atļauja
Patvirtinimas
Goedkeuring
Godkjenning
Dopuszczenie
Godkännande
Dovoljenje
Povolenie
Onay
Дозвіл

Sipariş verileri

Sip. No.	175568
Makale adı	MGB2-L1H-MLI-U-MA-R-175568
Ağırlık	2,56kg
Gümrük sınıfı	85371098
ECLASS	27-27-24-05 Safety-related transponder switch with guardlocking

Çerez bildirimi

Web sitesinin çalışması için gerekli olan teknik olarak gerekli çerezleri kullanıyoruz. Buna ek olarak, web sitemizin kullanımını analiz etmek ve teklifimizi sürekli olarak iyileştirmek için bir istatistik çerezi kullanıyoruz. İstatistik çerezinin kullanımına izin vermek isteyip istemediğinize kendiniz karar verebilirsiniz. Daha fazla bilgiyi gizlilik politikamızda bulabilirsiniz.

Gizlilik politikası Künye
