SGA1A-2121A-M (Sip. No. 103725)

Safety switch SGA

  • Cable entry M20 x 1.5
  • Switching disc made of metal
SGA1A-2121A-M (Sip. No. 103725)

Açıklama

Approach direction

Figure

Figure

Horizontal and vertical

Can be adjusted in 90° steps

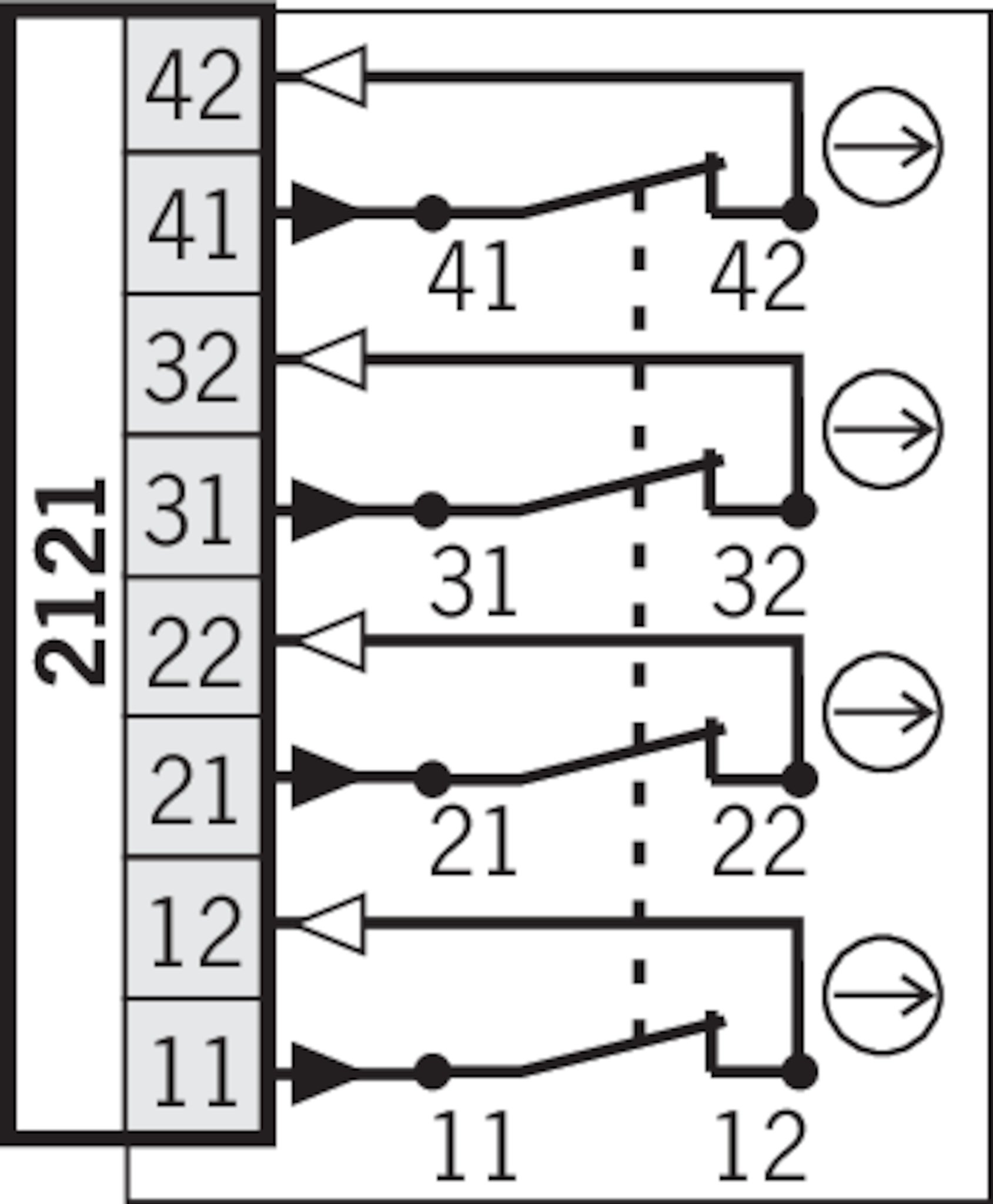

Switching element

2121Slow-action switching contact 4 NC

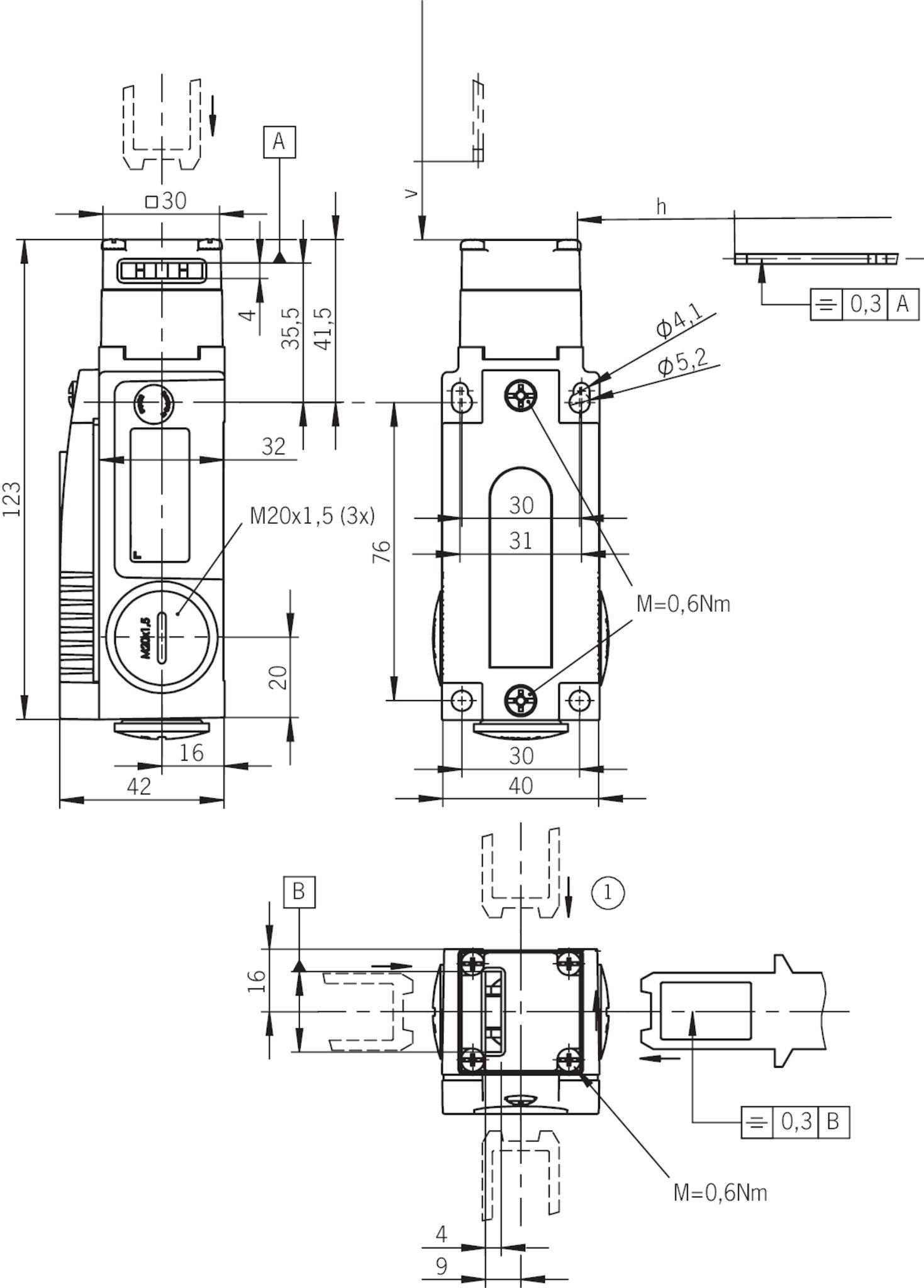

Dimension drawing
Dimension drawing
2121
2121
Electro-mechanical safety switches

Dimension drawing

Dimension drawing
1Actuating direction can be changed

2121

2121

Teknik Veriler

Onaylar

Zulassung EACZulassung DGUVZulassung c_UL_us LISTEDZulassung CCC

Mekanik Değerler ve Çevre

Housing material
Housing Die-cast alloy, cathodically dipped
Weight
Net 0,5 kg
Ambient temperature -20 ... 80 °C
Degree of protection IP67
Mechanical life 2 x 106
Contact material Silver alloy, gold flashed
Switching principle Slow-action switching contact
Installation orientation Any
Number of door position positively driven contacts 4
Connection
3 x M20 x 1.5
Approach speed max.20 m/min
Actuation frequency max.6700 1/h
Retention force 10 N
Extraction force 25 N
Actuating force 25 N
Insertion depth 24,5 mm

Elektriksel Bağlantı Değerleri

Thermal rated current Ith 4 A
Utilization category acc. to EN 60947-5-1
AC-15 4A 230V
DC-13 4A 24V
Short circuit protection according to IEC 60269-1 4A gG
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching voltage
Min. at 10mA 12 V
Switching current
Min. at 24V 1 mA
Connection cross-section 0,34 ... 1,5 mm²

EN ISO 13849-1 uyarınca güvenilirlik değerleri

Monitoring of the safety guard position
B10D 3 x 106

In combination with Actuator BETAETIGER-S-GT-SN

Mechanical values and environment

Overtravel 5 mm

Aksesuar

İndirme

Teknik Destek

Teknik Destek
