EKS-A-IUXA-G01-ST01/04 (Sip. No. 098513)

Electronic-Key adapter with USB interface, version FSA

  • Electronic-Key adapter with USB interface
  • Read/write system
  • Power supply via USB interface
  • Electronic-Key adapter and electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Transfers the data from the Electronic-Key to a control system for processing
  • Connection to PC
  • Virtual serial COM port
  • Open communication commands at the lowest level
  • 3964R protocol
  • Connection to the user software possible via ActiveX® module under Windows®
  • Version FSA (For Safety Applications)
EKS-A-IUXA-G01-ST01/04 (Sip. No. 098513)

Açıklama

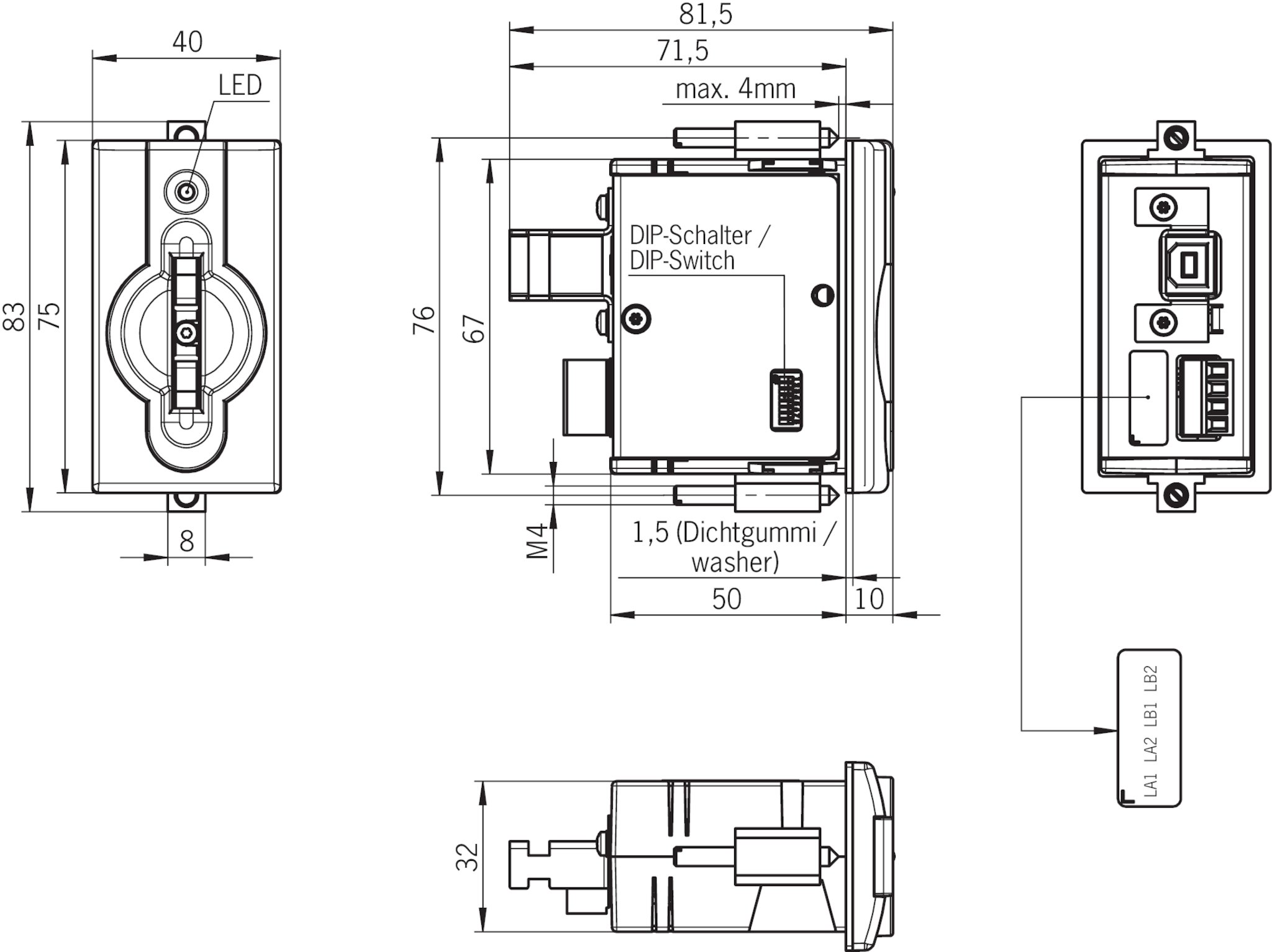

Dimension drawing
Dimension drawing

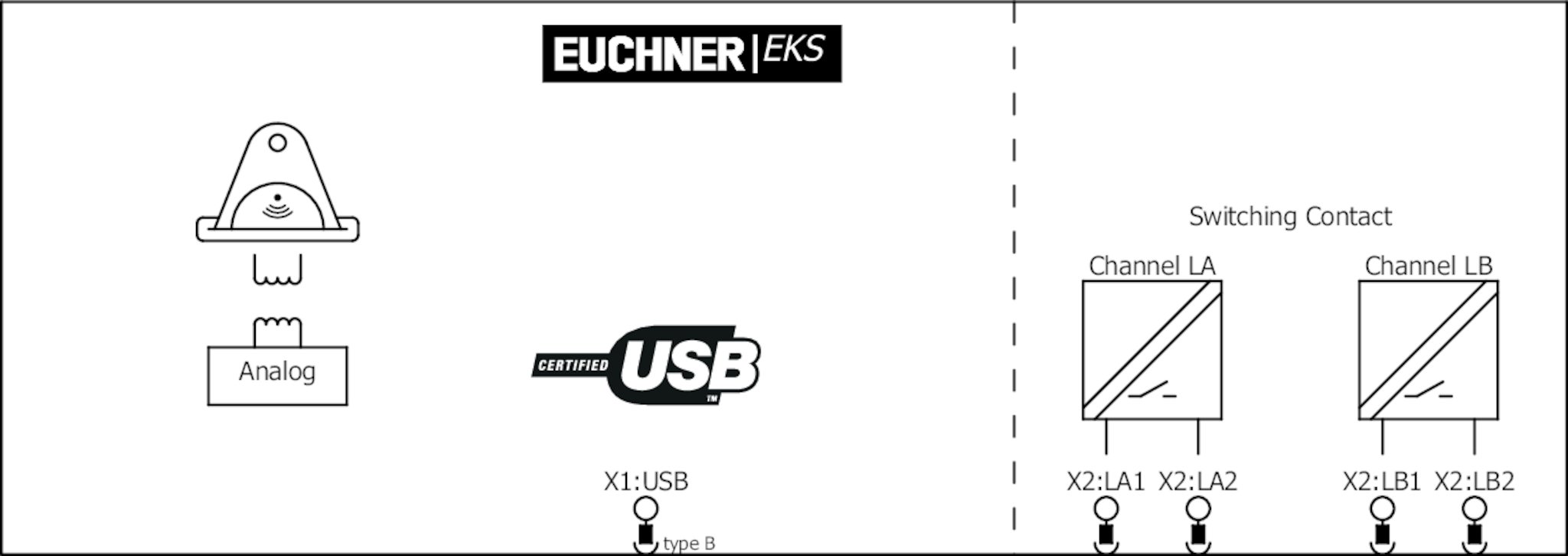

Wiring diagram
Wiring diagram
EKS FSA - Selection of safe operating mode up to PL e with touch panel

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Teknik Veriler

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E240367_X1/A1c_UL_us_E240367_X1/A1

Operating and display elements

LED display
Green operational
Yellow Key in actuating range

Electrical connection values

Current consumption max. 100 mA
Connection 2
Connection cross section 0.14 ... 1.5 mm²
Discrepancy time 200 ms Difference time between outputs (LB first) (If access on the interface takes place during the insertion or removal of the Electronic-Key, the simultaneity time can be more than 200 ms.)
Utilization category
AC-12 24 V 50 mA
DC-13 24 V 50 mA
AC-15 24 V 50 mA
DC-12 24 V 50 mA
Switching voltage 24 ... 30 V
Switching current 1 ... 10 ... 50 mA with short circuit protection max. 100 times

Mechanical values and environment

Installation orientation on the front
Mounting cut-out according to DIN IEC 61554 33x68 mm
Degree of protection
in mounted condition (only access side) IP67
Ambient temperature 0 ... +55 °C
Material
Housing PA6-GF30, gray
USB interface
Connection type USB type B socket
Cable length max. 3 m USB

Miscellaneous

Connection 2
Additional feature
max. 1 Capacitive load per output in µF
35 Resistance in switched-on state in ohm

Interface

USB interface
Data protocol 3964R via USB
Data rate 9.6 ... 28.8 kbit/s
Interface
to PC USB Full Speed (compatible with all USB versions)

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 4,9 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 098513
Makale adı EKS-A-IUXA-G01-ST01/04
Ağırlık 0,184kg
Gümrük sınıfı 85364900
ECLASS 27-39-90-90 Property, access monitor (other, unspecified)
