TZ1RE110MVAB-C1623 (Order no. 088063)

Safety switch TZ, without mechanical release

  • Without auxiliary release
  • Protective plate for switch head
  • Two LED indicators, red and green
  • Actuating head fitted right
TZ1RE110MVAB-C1623 (Order no. 088063)

Description

Approach direction

Figure

Figure

Horizontal

Can be adjusted in 90° steps

Protective plate for switch head

Makes it more difficult to tamper with the switch.

Solenoid operating voltage and LED function display

  • 110 V AC -15%, +10%

Guard locking type

TZ1Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid.

Switching elements

SKFor monitoring the door/actuator position
ÜKFor monitoring the guard locking (built-in solenoid)
2131HSlow-action switching contact 3 NC + 1 NO
3131HSlow-action switching contact 2 NC + 2 NO

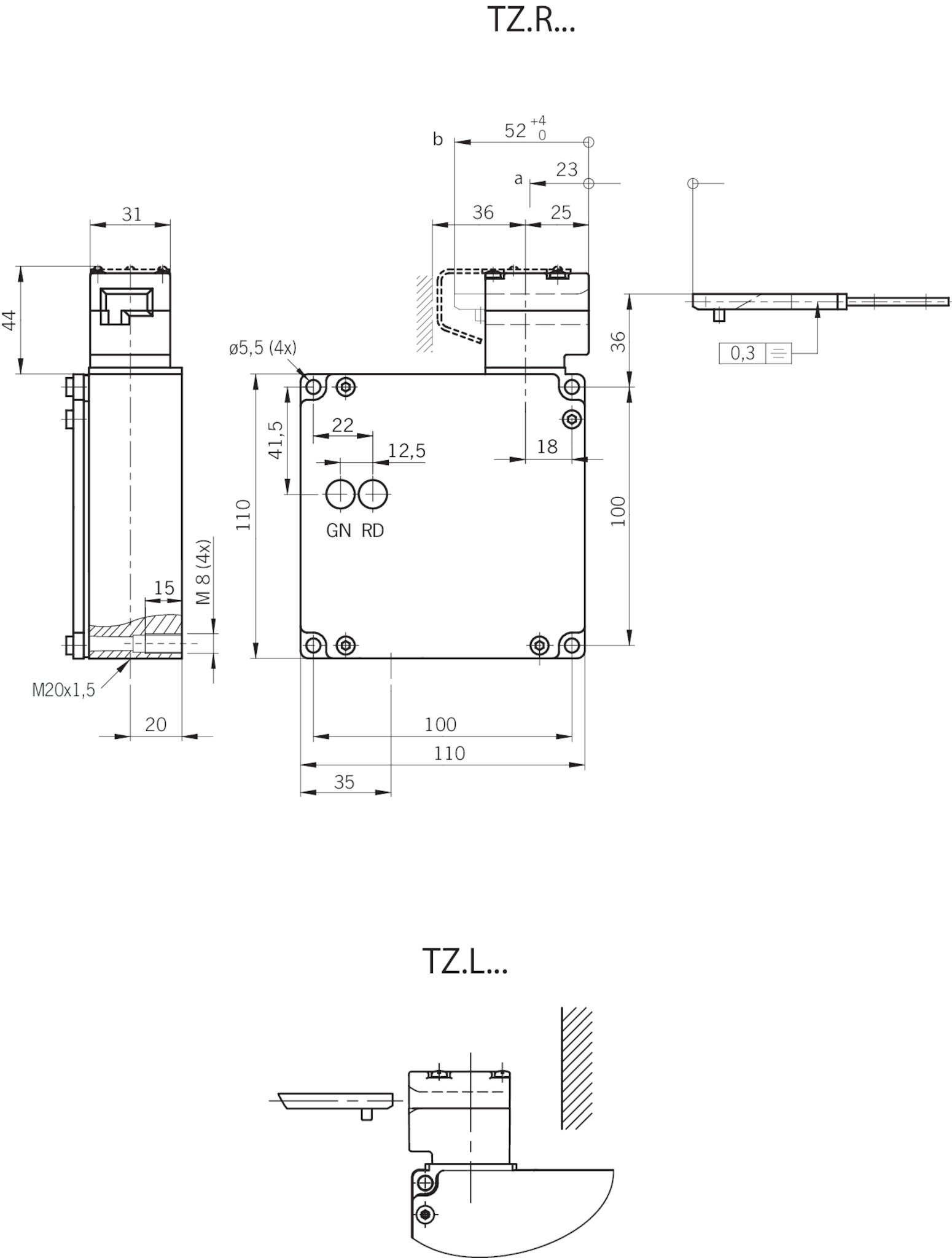

Dimension drawing
Dimension drawing
SK: 2131H / ÜK: 3131H
SK: 2131H / ÜK: 3131H
Switching functions
Switching functions
Electro-mechanical safety switches

Dimension drawing

SK: 2131H / ÜK: 3131H

Solenoid monitoring
Door monitoring

Switching functions

Technical data

Approvals

Zulassung EACZulassung DNV GLZulassung c_UL_us LISTEDZulassung CCC

Mechanical values and environment

Housing material
Housing Anodized die-cast alloy
Weight
Net 1,2 kg
Ambient temperature -25 ... 80 °C
Degree of protection IP67
Mechanical life 1 x 106
Contact material Silver alloy, gold flashed
Switching principle Slow-action switching contact
Installation orientation Any
Number of door position positively driven contacts 3
Number of door position NO contacts 1
Number of guard lock monitoring positively driven contacts 2
Number of guard lock monitoring NO contacts 2
Connection
1 x M20 x 1.5
Approach speed max.20 m/min
Actuation frequency max.1200 1/h
Guard locking principle Closed-circuit current principle
Locking force Fmax 2000 N
Locking force FZh 1500 N
Retention force 10 N
Extraction force 30 N
Actuating force 35 N
Insertion depth min.52 mm
Lid Black

Electrical connection ratings

Thermal rated current Ith 4 A (>70°C => 2A)
Utilization category according to EN 60947-5-1
AC-15 4A 230V (>70°C => 2A)
DC-13 4A 24V (>70°C => 2A)
Solenoid operating voltage
AC 110 V -15% ... +10%
Short circuit protection according to IEC 60269-1 4A gG (>70°C => 2A gG)
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching voltage
Min. at 10mA 12 V
Switching current
Min. at 24V 1 mA
Power consumption 10 W
Solenoid duty cycle 100 %
Connection cross-section 0,34 ... 1,5 mm²
LED indicator Operating voltage corresponds to the solenoid voltage (2 LEDs; green, red)

Reliability values according to EN ISO 13849-1

Control of the guard locking
Category Depending on external control of guard locking
Performance Level Depending on external control of guard locking
PFHD Depending on external control of guard locking
Monitoring of guard locking and the safety guard position
B10D 3 x 106

In combination with Actuator BETAETIGER-Z-G

Mechanical values and environment

Overtravel 4 mm
