Plug connector M12
- M12 female plug, 4-pin
- Straight plug connector
- PUR cable
- Halogen-free
- Cable length 5 m
- With flying lead
- Cores color-coded

Ismertetés

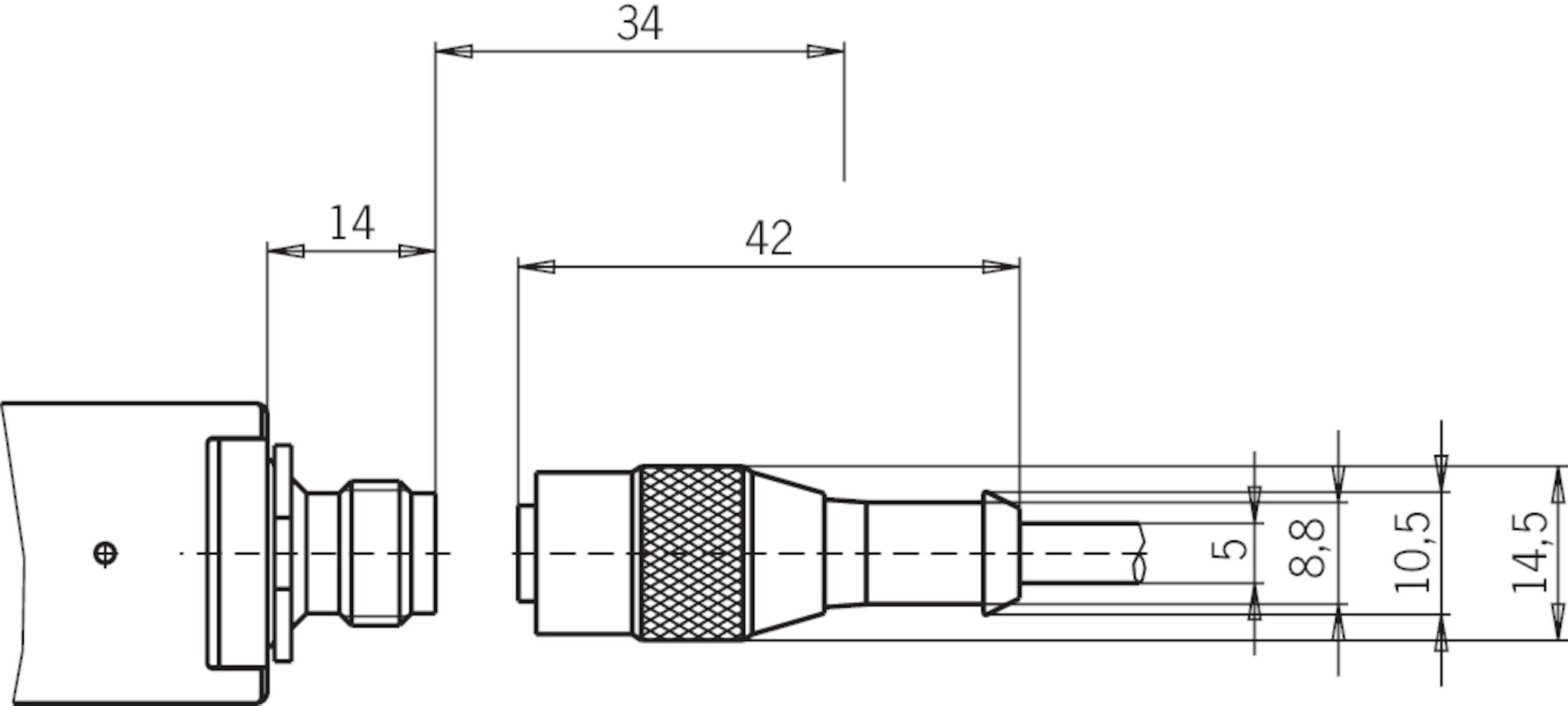

Dimension drawing

Wiring diagram (view of connection side)

Műszaki adatok
Mechanikai értékek és környezet
Cable ambient temperature (dynamic) | -25 ... +80 °C |
Cable ambient temperature (static) | -25 ... +80 °C |
Dynamic bending radius | 10 x cable diameter |
Static bending radius | 5 x cable diameter |
Sheath material | PUR |
Drag chain suitability | Yes |
Number of conductors | 4 |
Type of cable | straight |
Cable length | 5 m |
Cable diameter | |
Approx. | 4,7 mm |
Conductor cross-section | 0.34 mm² |
Connection 1 | |
Tightening torque | 0,5 Nm |
Degree of protection | IP67 (Only in the screwed tight state with the relating mating components) |
Plug lock material | CuZn |
Connection | Plug connectors M12x1 |
Connection type | Female plug |
Cable outlet | straight |
Number of pins | 4 |
Plug lock | Screw connection |
Plug housing material | TPU |
Connection 2 | |
Conductor end | Trimmed smooth |
Connection | Flying lead |
Elektromos csatlakoztatási értékek
Rated voltage | 250 V |
Test voltage | 2 kV (eff./60s) |
Connection 1 | |
Degree of contamination according to EN 60664-1 | 3 |
