ZSE2-1 (Rend. sz. 052448)

ZSE, 3-stage

  • 3-stage function
  • 30.5 mm installation dimension
  • Suitable for installation in hand-held pendant stations HBL or housing G2 or G3, for example
ZSE2-1 (Rend. sz. 052448)

Ismertetés

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Switching element

111

1NO + 1NC + 1NC

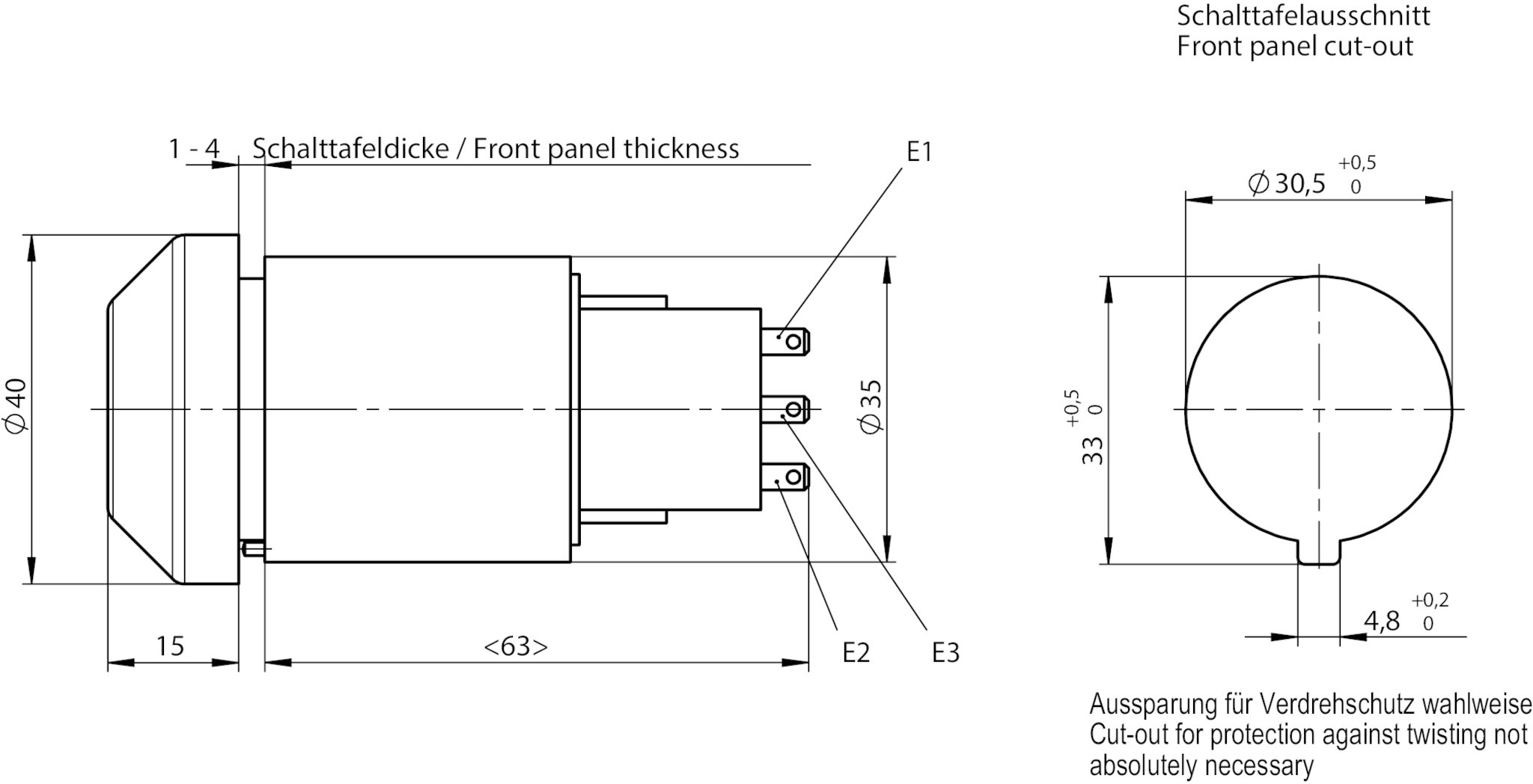

Dimension drawing
Dimension drawing
Wiring diagram 111
Wiring diagram 111
Travel diagram
Travel diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
closed, enabling
closed
open

Műszaki adatok

Approvals

CCC2020980305002418_CQC2009010305380679_2024EAC_RU C-DE.MO05.B.00972/20

Electrical connection values

rated conditional short-circuit current 100 A
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 3 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching voltage
at 10 mA min. 12 V
Switching current
at 24V min. 1 mA
Degree of contamination (external, according to EN 60947-1)
Industry 3

Mechanical values and environment

Connection type Tab connector 2.8 x 0.8 IEC 760
Number NC contacts 1
Number of NO contacts 1
Number of positively driven contacts 1
Installation orientation any
Mechanical life
Position 1-2-1 0.1 x 10⁶
Position 1-2-3-1 0.1 x 10⁶
Mounting type IEC 947-5-1 D30 ((bore 30.5))
Switching principle Slow-action contact element
Degree of protection
IP65 (on the front)
IP00 (Connections)
Ambient temperature -5 ... +60 °C
Material
Housing Plastic, color black
Cap Elastomer, low PAH, black

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.5 x 10⁶

Miscellaneous

in compliance with 60947-5-8

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 1,0 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 052448
Cikk neve ZSE2-1
Súly 0,098kg
Vámtarifaszám 85365019000
ECLASS 27-37-12-38 Agreement switch
