NZ2WO-511L060C1630 (Rend. sz. 059481)

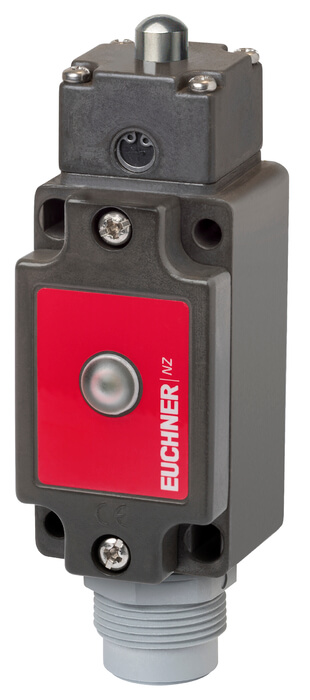

Safety switch NZ.WO, rounded plunger, plug connector SR6

  • Rounded plunger
  • Version B according to EN 50041 (hardened)
  • SR6 plug connector; 6-pin + PE
  • 1 pos. driven contact
  • 1 NO contacts
  • LED indicator: AC/DC 12-60 V yellow
NZ2WO-511L060C1630 (Rend. sz. 059481)

Ismertetés

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

LED indicator

The switch has one freely assignable LED indicator.

Switching element

511

Snap-action switching contact, 1 positively driven contact + 1 NO contact

Dimension drawing
Dimension drawing
Wiring diagram 511
Wiring diagram 511
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1NO contact
2Normally closed contact
3Free position

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
g_Kontakte_geschlossen_sw.epsContacts closed
g_Kontakte_offen_sw.epsContacts open
g_Kontakte_zwangsgeoeffnet_sw.epsContacts positively driven

Műszaki adatok

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1CCC2024010305643584_SafetySwitch Nc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 6 A gG
Display module
AC/DC 12 ... 60 ... 60 V LED yellow
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 6 A 24 V
AC-15 6 A 230 V
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 6 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.1 ... 10 m/min
Connection type
1 x Plug connector SR6 (6-pin + PE)
Number of NO contacts 1
Number of door position positively driven contacts 1
Actuating element Rounded plunger
Actuating force 15 ... 30 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact (Contact closing time<4 Contact bounce time<3)
Schließzeit max. 4 ms
Degree of protection IP65
Ambient temperature -25 ... 80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Safety position sensor2x10720 y
Important! Values valid at DC-13 100 mA/24V


Miscellaneous

C number
C1630

Tartozékok

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 5,0 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 059481
Cikk neve NZ2WO-511L060C1630
Súly 0,366kg
Vámtarifaszám 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
