BETAETIGER-M-G (Rend. sz. 074076)

Actuators for safety switches NM.VZ

  • Actuators made of stainless steel
  • Two stainless safety screws per actuator
BETAETIGER-M-G (Rend. sz. 074076)

Ismertetés

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 150 mm. Safety screws prevent unscrewing of the actuators.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

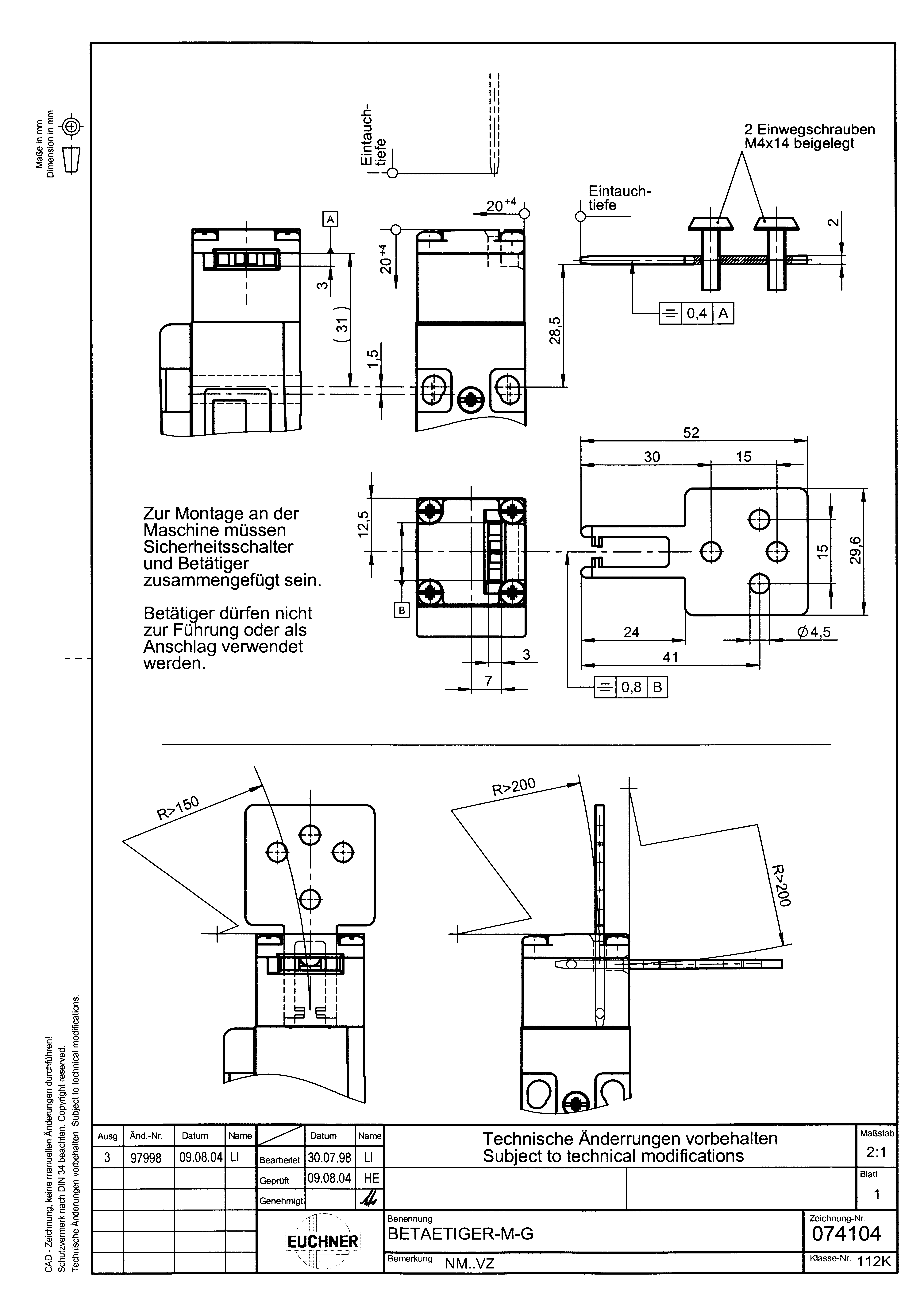

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Műszaki adatok

Mechanikai értékek és környezet

Material
Actuator Stainless steel
screw Stainless steel
Door radius min.150 mm
Overtravel max.4 mm

Egyebek

Usability of insertion funnel Yes
