Precision single hole fixing limit switch EGM12
- With snap-action switching element
- Plunger material stainless steel
- Any installation orientation

Ismertetés
Switching element

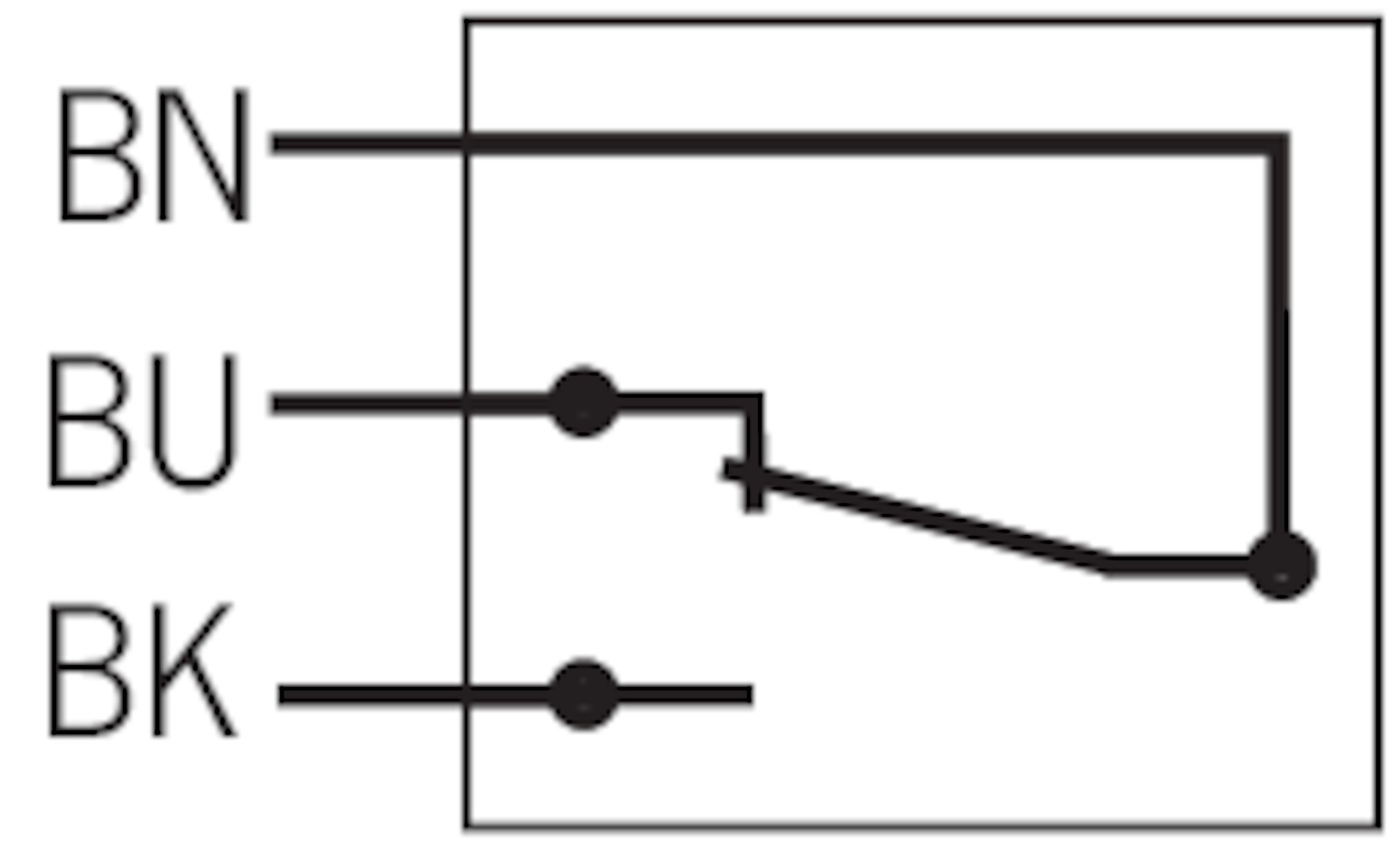

Snap-action switching contact, 1 changeover contact
Single hole fixing limit switches must not be used as an end stop.


Dimension drawing

1 | End position |
2 | Differential travel |
3 | Operating point |
C1791

Műszaki adatok
Engedélyezések


Mechanikai értékek és környezet
Cable ambient temperature (static) | -20 ... 80 °C |
Design | Thread M12 x 1 |
Housing material | |
Housing | Stainless steel |
Degree of protection | IP65 |
Mechanical life | 1 x 106 |
Contact material | Silver alloy, gold-plated |
Switching principle | Snap-action switching contact |
Repeat accuracy (absolute) | ±0,01 mm (On axial actuation in the retracted state after approx. 2000 operating cycles) |
Installation orientation | Any |
Number of NC contacts | 1 (Changeover contact) |
Number of NO contacts | 1 (Changeover contact) |
Connection | PUR cable (Three-core) |
Cable length | 1,2 m |
Approach speed | 0,01 ... 8 m/min |
Actuating element | Flat plunger (Short) |
Actuating force | |
Approx. | 16 N |
Elektromos csatlakoztatási értékek
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 0.5A 230V |
DC-13 | 0.6A 24V |
Short circuit protection according to IEC 60269-1 | 2A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching voltage | |
min. | 12 V |
Switching current | |
Min. at 24V | 10 mA |
Connection cross-section | 0,5 mm² |
