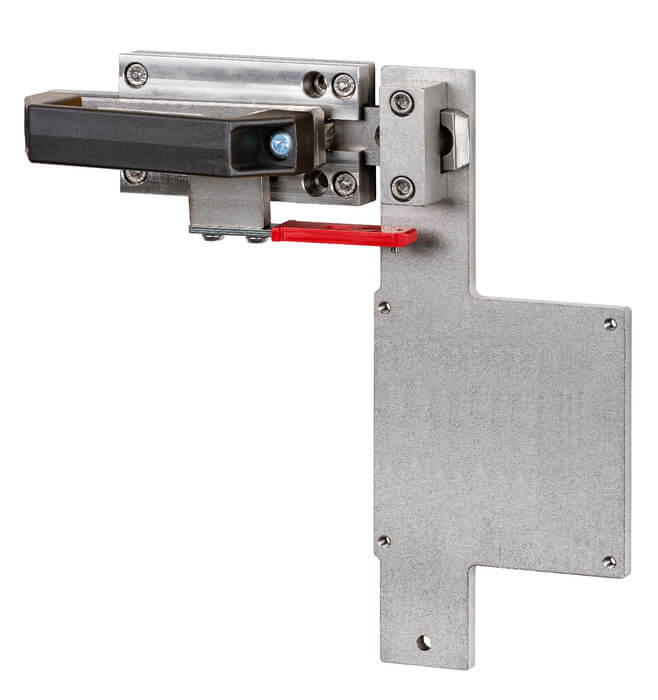

RIEGEL TZ-C-NIRO (Rend. sz. 079799)

Bolt TZ-C... for safety switches TZ

  • Stainless steel bolt
  • For doors hinged on the left
  • Can be locked in open position with padlocks
  • Actuator and switch bracket included
RIEGEL TZ-C-NIRO (Rend. sz. 079799)

Ismertetés

Advantages

  • Robust construction
  • Easily fitted to standard aluminum profiles and machine covers by screw connection
  • No additional door handle necessary

Special features

  • Easy to use

Version in stainless steel

  • Suitable for use in the chemical and foodstuff industries
  • Screw material stainless steel
  • Handle material polypropylene
  • Slide strip material polyethylene
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing
1View D
2View B
3Metal sleeve
4Stop screw locked
5Safety switch TZ approach direction C
6Attention! Bolt is not allowed to be used in conjunction with an escape release!
7Safety guard frame (40x40)
8Door hinged on the left

Műszaki adatok

Mechanikai értékek és környezet

Material
Switch bracket Stainless steel
Guide strips Plastic
Base plate Stainless steel
Handle Plastic
Weight
Net 2,5 kg
Escape release No
Number of safety switches that can be fitted 1

Egyebek

Detent mechanism No
