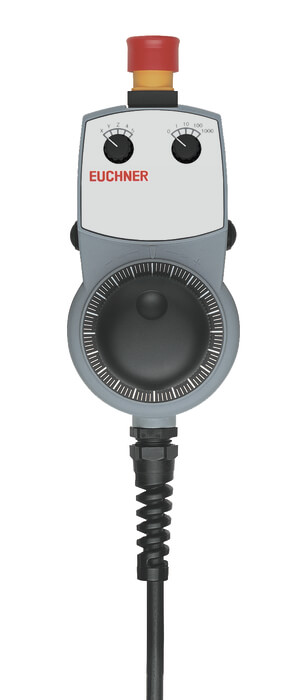

Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, handwheel, selector switch
- Handwheel 100 pulses, wear-free magnetic detent mechanism
- 2 pushbuttons 2-stage, 1 NO contact each, e.g. for enabling function
- Tamper-proof EMERGENCY STOP device according to EN 13850, dual-channel
- 2 selector switches, 5 positions each (X, Y, Z, 4, 5 and 0, 1, 10, 100, 1000)

Ismertetés

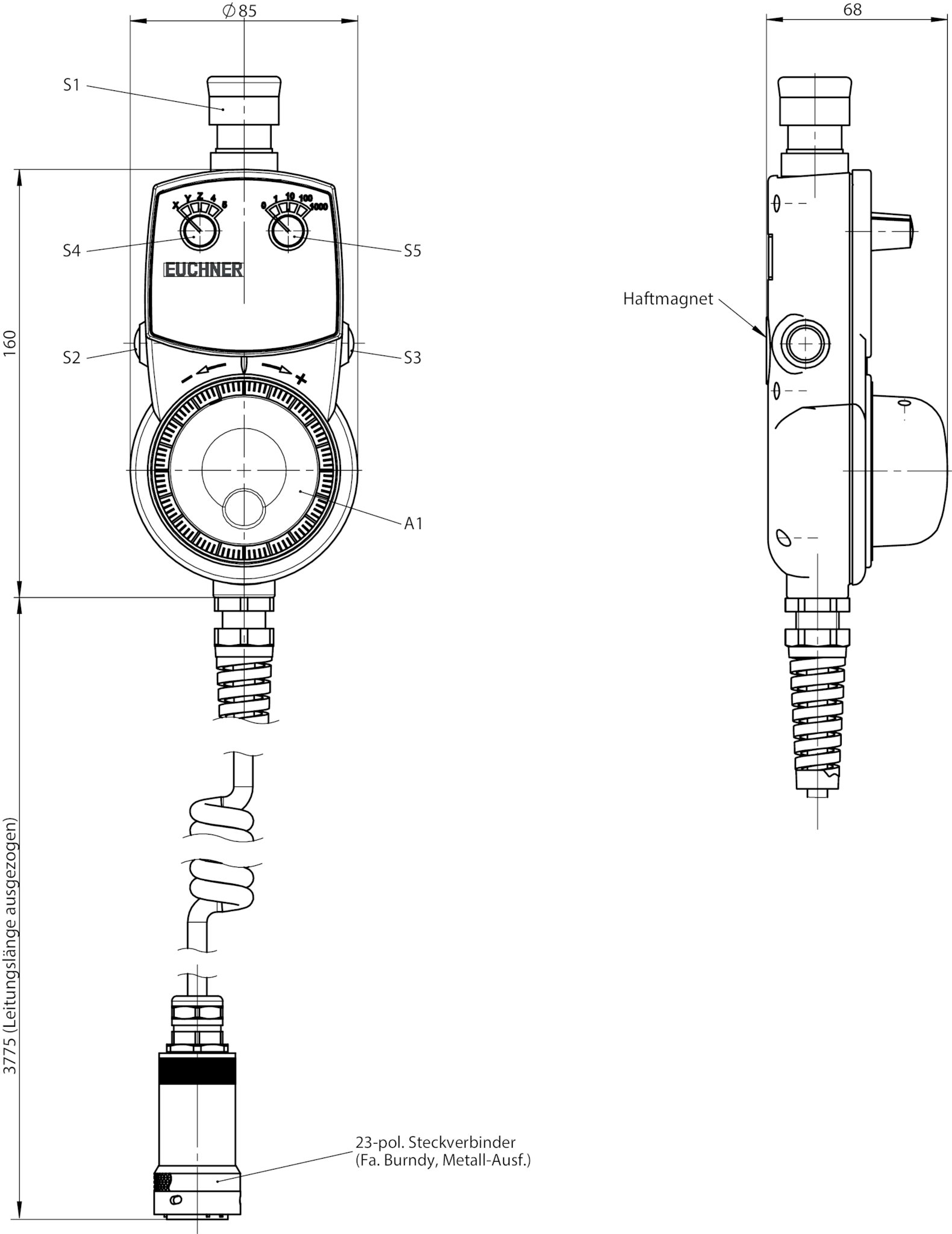

Dimension drawing

Wiring diagram

Műszaki adatok
Engedélyezések


Mechanikai értékek és környezet
Shock and vibration resistance | Acc. to EN 60068-2-27/-2-6 |
Material | Polycarbonate |
Weight | |
Net | 1,3 kg |
Ambient temperature | 0 ... 50 °C |
Atmospheric humidity | |
(condensation not permissible) | max.80 % rH |
Degree of protection | IP65 (On the front) |
Acc. to Nema | 205-12 (On the front) |
Connection | Plug connector (23-pin, metal version) |
Cable length | |
coiled | 3,775 m (Extended) |
Handwheel | |
Detent positions per revolution | |
Handwheel | 100 (Magnetic detent mechanism) |
Elektromos csatlakoztatási értékek
EMC protection requirements | |
Acc. to CE | EN 61000-6-2, EN 61000-6-4 |
Connecting cable | 23x0.14mm² (Screened) |
Handwheel | |
Type of output | |
Handwheel | RS422 |
Operating voltage DC | |
Handwheel | 5 V DC -5% ... 5% |
Switching voltage | |
Selector switch | max.15 V |
Pushbuttons | max.DC 50 V |
max.AC 32 V | |
Switching current | |
Pushbuttons | max.100 mA |
Selector switch | 0,1 ... 20 mA |
Utilization category acc. to EN 60947-5-1 | |
DC-13 | 24V DC / 3A |
Breaking capacity (VA) | |
Selector switch | max.0,2 VA |
Pulses per revolution | |
Handwheel | 2x100 |
Kezelő- és kijelzőegységek
Control/indicator | |
Version | Emergency stop |
Slide-in label | |
Special features | - |
Color | Red-yellow |
Switching element | 2 positively driven contacts |
Position | See data sheets |
Control/indicator | |
Version | Push button |
Slide-in label | |
Special features | - |
Color | Black |
Switching element | 1 NO contact each |
Position | See data sheets |
Control/indicator | |
Version | Selector switch |
Slide-in label | |
Special features | - |
Color | Black knob with marking |
Switching element | 5-stage, Gray coded, detent angle 22.5° |
Position | See data sheets |
Control/indicator | |
Version | Selector switch |
Slide-in label | |
Special features | - |
Color | Black knob with marking |
Switching element | 5-stage, Gray coded, detent angle 22.5° |
Position | See data sheets |
Control/indicator | |
Version | Handwheel |
Slide-in label | |
Special features | - |
Color | Black plastic adjusting wheel |
Switching element | - |
Position | See data sheets |
Egyebek
Color | |
Housing | Gray RAL 7040 |
For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
Tartozékok
Function expansion
Extension cable 23-core, straight

091466
23POL/5M/METALLAUSFUEHRUNG-091466
23POL/5M/METALLAUSFUEHRUNG-091466
- Extension cable
- Flange plug connector with socket contacts, 23-pin
- Plug connector with male contacts, 23-pin
- Bayonet plug lock
- PUR cable
- Cable length 5 m, straight

091467
23POL/10M/METALLAUSFUEHRUNG
23POL/10M/METALLAUSFUEHRUNG
- Extension cable
- Flange plug connector with socket contacts, 23-pin
- Plug connector with male contacts, 23-pin
- Bayonet plug lock
- PUR cable
- Cable length 10 m, straight
