Position switch NG.HS, steel roller
- Roller lever arm HS (steel roller)
- Cable entry M20 x 1.5
- LED indicator

Ismertetés

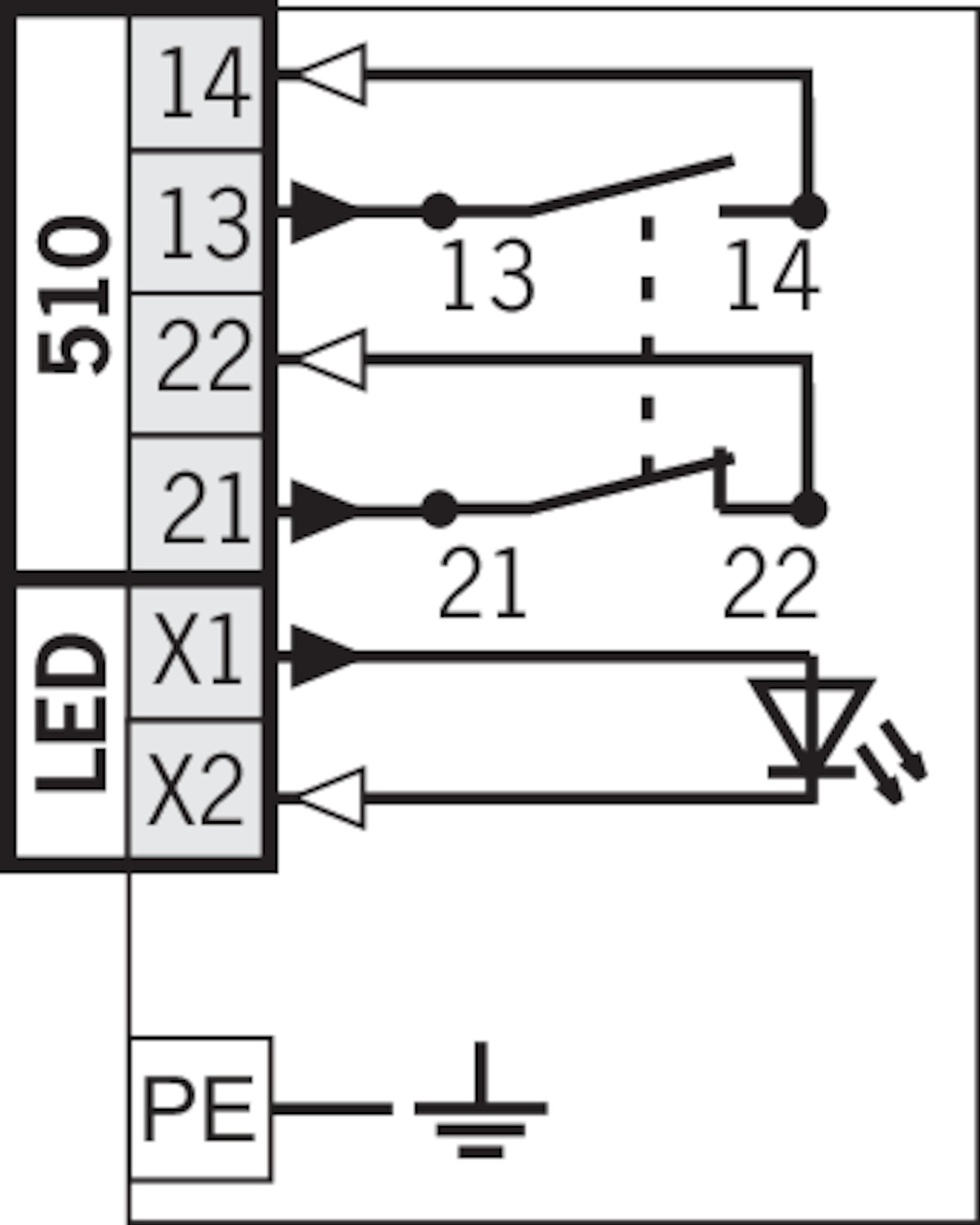

Switching element
510 | Snap-action switching contact 1 NC + 1 NO |
LED function display
A function display is available for the following voltage range:
- 12-60 V AC/DC L060
Adjustment options
Horizontal and vertical 4 x 90°
switching direction
Switches to the right, left or both sides
Dimension drawing

510

Travel diagram

![]() | Contacts closed |
![]() | Contacts open |
A | Operating point |
B | End position |
C | Reset point |
Műszaki adatok
Engedélyezések



Mechanikai értékek és környezet
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Net | 0,3 kg |
Ambient temperature | -25 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Snap-action switching contact |
Installation orientation | Any |
Number of door position NC contacts | 1 |
Number of door position NO contacts | 1 |
Connection | |
1 x | M20 x 1.5 |
Approach speed | 0,1 ... 60 m/min |
Actuating element | |
Plain bearing metal | Roller lever arm (d roller = 18 mm length 32 mm) |
Actuating force | min.15 N |
Elektromos csatlakoztatási értékek
Thermal rated current Ith | 6 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 6A 230V |
DC-13 | 6A 24V |
AC-12 | 10A 230V |
Short circuit protection according to IEC 60269-1 | 6A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | 10 mA |
Connection cross-section | 0,34 ... 0,75 mm² |
Display module | |
AC/DC | 60 V 12 ... 60 V LED red |
