KezdőlapProductsPosition switches and multiple limit switchesMultiple limit switch, upright SNSN02D12-1508-M

SN02D12-1508-M (Rend. sz. 082189)

Válasszon tartalmat Ismertetés Méretrajzok Műszaki adatok Komponensek Tartozékok Letöltési link Rendelési adatok

Series SN... 12 mm, mechanical

Plunger spacing 12 mm
Upright housing, small flange
Degree of protection IP67 according to IEC 60529

Ismertetés

Switching elements

ES 502 E	Snap-action switching contact 1 NC + 1 NO
ES 508	Slow-action switching contact 1 NC

On the usage of safety switching elements, the dog distance must be maintained to achieve the positively driven travel. The dogs must be positively mounted according to EN ISO 14119, i.e. riveted, welded or secured in some other way against becoming loose.

Dimensional drawings

*	Safety switching element ES 508E positively driven. Positive opening function is dependent on maintaining this distance.
1	Operating point
2	Free position
3	Dog
4	n Number of plungers
5	Actuators (dogs) must be connected to the machine in a flush position.
6	Switch can be replaced only with the same type.
7	Pressure sensitive label 041734 applied.

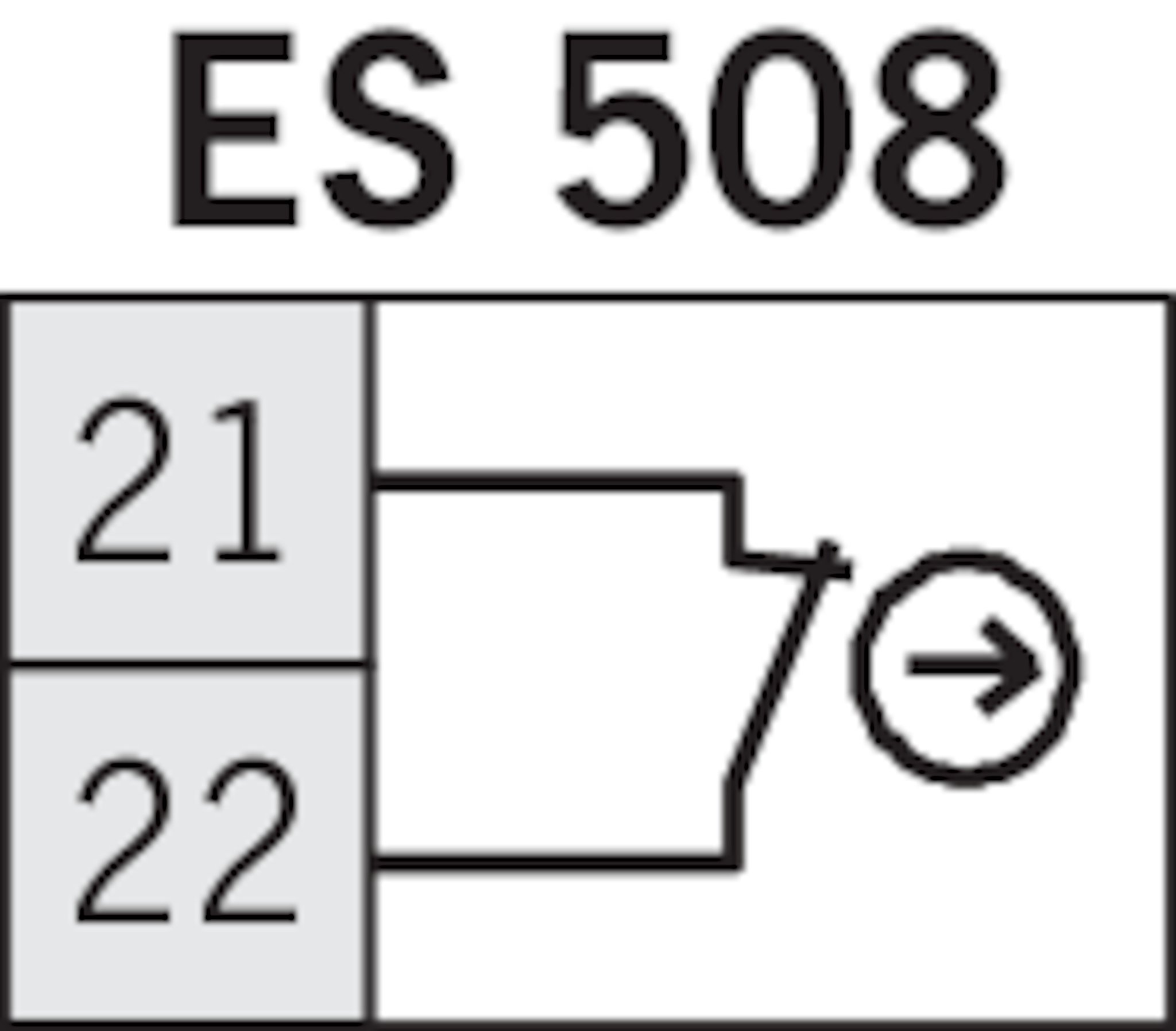

Connection examples

Műszaki adatok

Approvals

Electrical connection values

Fuse	max. 8 A gG
Connection cross section	0.34 ... 1.5 mm²
Rated insulation voltage U_i	250 V
Rated impulse voltage U_imp	2.5 kV
Utilization category
AC-12	8 A 250 V
DC-13	6 A 24 V
AC-15	6 A 230 V
Switching current
min. at DC 12V	min. 10 mA (applies from station 2 with switching element ES502E)
min. at DC 24V	min. 10 mA (applies to station 1 with switching element ES508)
thermal rated current I_th	8 A

Mechanical values and environment

Anfahrgeschwindigkeit	0.01 ... 40 m/min
Connection type
2 x	M20 x 1.5
Number NC contacts	1
Number of switching elements	2
Number of NO contacts	1
Number of positively driven contacts	1
Design	upright
Actuating element	Chisel plunger (Operating point accuracy ± 0.002. The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.)
Actuating force	min. 20 N
Installation orientation	any
Mechanical life	30 x 10⁶
Switching principle
	Snap-action switching contact (Contact closing time<4 ms, contact bounce time<3 ms, applies from station 2 with switching element ES502E)
	Slow-action switching contact (applies to station 1 with switching element ES508)
Degree of protection	IP67
Plunger spacing	12 mm
Ambient temperature	-5 ... 80 °C
Material
Housing	Die-cast aluminum, anodized
Contact	Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B_10D	20 x 10⁶

B_10D

20 x 10⁶

Miscellaneous

Additional information	Mixed contact assembly (On upright multiple limit switches, it is necessary to start with the safety station/s from the flange side. If several safety stations are to be installed, these must be installed directly one after the other.)

Additional information

Mixed contact assembly (On upright multiple limit switches, it is necessary to start with the safety station/s from the flange side. If several safety stations are to be installed, these must be installed directly one after the other.)
