NPU-11A-M-176238 (Rend. sz. 176238)

Safety switch NPU, cable entry M20 x 1.5

  • Cable entry M20 x 1.5
  • 1 pos. driven contact
  • 1 NO contacts
NPU-11A-M-176238 (Rend. sz. 176238)

Ismertetés

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element

NPU-11

Slow-action switching contact 1 positively driven contact + 1 NO contact

Accessories required

Actuator is not included.

Dimension drawing
Dimension drawing

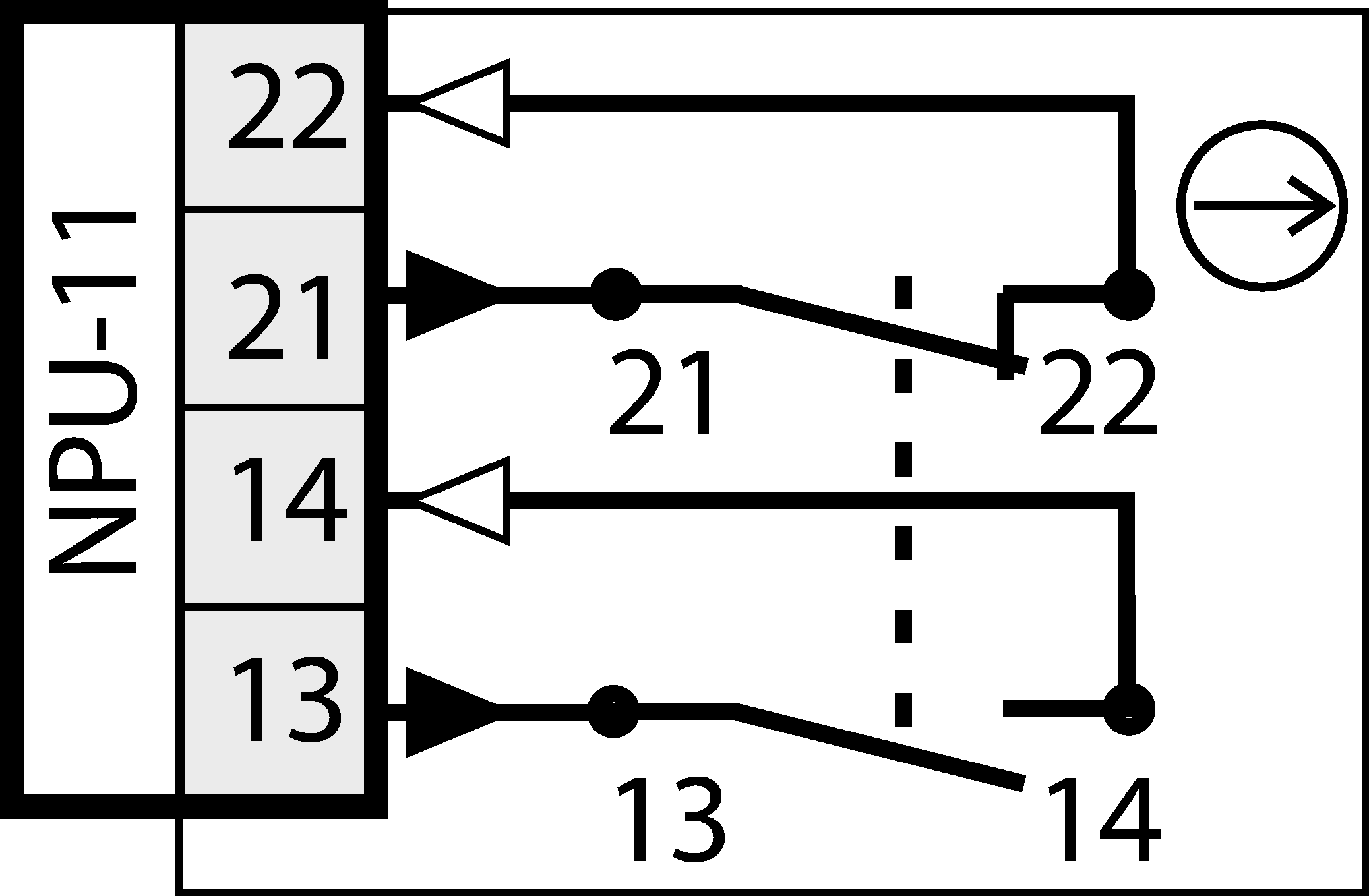

Wiring diagram
Wiring diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Műszaki adatok

Electrical connection values

Fuse max. 4 A gG
Connection cross section 0.34 ... 1.0 mm²
Rated insulation voltage Ui 30 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 24 V
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit max. 20 m/min
Approach direction A
Connection type
1 x M20 x 1.5
Number of door position NO contacts 1
Number of door position positively driven contacts 1
Extraction force 10 N
Actuation frequency max. 7000 1/h
Actuating force 5 N
Installation orientation any
Horizontal insertion depth 28 mm
Vertical insertion depth 29.5 mm
Storage temperature -25 ... 80 °C
Mechanical life 1 x 10⁶
Retention force 2 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... 80 °C
Material
Housing Reinforced thermoplastic
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position1x10620 y
Important! Values valid at DC-13 100 mA/24V


In combination with actuator ACTUATOR-P-GT

Horizontal overtravel 2 mm
Vertical overtravel 1.5 mm

In combination with actuator ACTUATOR-P-GNT

Horizontal overtravel 7 mm

Tartozékok

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 2,4 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 176238
Cikk neve NPU-11A-M-176238
Súly 0,kg
Vámtarifaszám 85365019000
ECLASS 27-27-26-02 Safety switch with separate actuator (Type 2)
