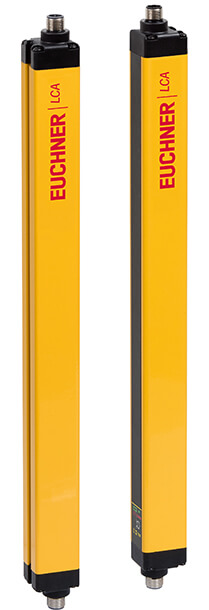

Light grids and light curtains LCA 4 Master / Slave
- Cascading (series connection)
- Safe monitoring options for any application
- Simple connection with M12 plug connector
- Safety category 4 and PL e according to EN ISO 13849-1
- ESPE type 4 according to DIN EN 61496-1
- Integrated evaluation
- Feedback loop connection
Benefits for you

A single product from the family LCA 4 master/slave already achieves category 4 / PL e according to EN ISO 13849-1 without additional fault exclusion. It meets all requirements for electro-sensitive protective equipment of type 4 according to DIN EN 61496-1.
These products are ideally suited for applications in which
- machine operators must interact with the machine in very brief cycles, e.g. at loading points of automatic assembly machines.
- dangerous work areas must be secured in a continuously interlinked material flow without disturbing the material flow.
- the danger area must be secured on machines without a safety enclosure, e.g. on sheet metal processing machines, on presses, on film winding machines and on paper cutting machines.
- people must be prevented from stepping behind access protection.
Termékkereső
Gyorskeresés
Resolution
Protective field height
Master / Slave 1 / Slave 2
Termékek (45)

156595
LCA-4TR-M-14-1060-AP-156595
Light curtain LCA-4TR-M-14-1060
LCA-4TR-M-14-1060-AP-156595
Light curtain LCA-4TR-M-14-1060
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,060 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156596
LCA-4TR-M-14-1210-AP-156596
Light curtain LCA-4TR-M-14-1210
LCA-4TR-M-14-1210-AP-156596
Light curtain LCA-4TR-M-14-1210
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,210 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156590
LCA-4TR-M-14-310-AP-156590
Light curtain LCA-4TR-M-14-310
LCA-4TR-M-14-310-AP-156590
Light curtain LCA-4TR-M-14-310
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 310 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156591
LCA-4TR-M-14-460-AP-156591
Light curtain LCA-4TR-M-14-460
LCA-4TR-M-14-460-AP-156591
Light curtain LCA-4TR-M-14-460
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 460 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156592
LCA-4TR-M-14-610-AP-156592
Light curtain LCA-4TR-M-14-610
LCA-4TR-M-14-610-AP-156592
Light curtain LCA-4TR-M-14-610
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 610 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156593
LCA-4TR-M-14-760-AP-156593
Light curtain LCA-4TR-M-14-760
LCA-4TR-M-14-760-AP-156593
Light curtain LCA-4TR-M-14-760
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 760 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156594
LCA-4TR-M-14-910-AP-156594
Light curtain LCA-4TR-M-14-910
LCA-4TR-M-14-910-AP-156594
Light curtain LCA-4TR-M-14-910
- Light curtain master
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 910 mm
- Range 6 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156603
LCA-4TR-M-30-1060-AP-156603
Light curtain LCA-4TR-M-30-1060
LCA-4TR-M-30-1060-AP-156603
Light curtain LCA-4TR-M-30-1060
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,060 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156604
LCA-4TR-M-30-1210-AP-156604
Light curtain LCA-4TR-M-30-1210
LCA-4TR-M-30-1210-AP-156604
Light curtain LCA-4TR-M-30-1210
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,210 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156597
LCA-4TR-M-30-260-AP-156597
Light curtain LCA-4TR-M-30-260
LCA-4TR-M-30-260-AP-156597
Light curtain LCA-4TR-M-30-260
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 260 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156598
LCA-4TR-M-30-310-AP-156598
Light curtain LCA-4TR-M-30-310
LCA-4TR-M-30-310-AP-156598
Light curtain LCA-4TR-M-30-310
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 310 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156599
LCA-4TR-M-30-460-AP-156599
Light curtain LCA-4TR-M-30-460
LCA-4TR-M-30-460-AP-156599
Light curtain LCA-4TR-M-30-460
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 460 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156600
LCA-4TR-M-30-610-AP-156600
Light curtain LCA-4TR-M-30-610
LCA-4TR-M-30-610-AP-156600
Light curtain LCA-4TR-M-30-610
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 610 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156601
LCA-4TR-M-30-760-AP-156601
Light curtain LCA-4TR-M-30-760
LCA-4TR-M-30-760-AP-156601
Light curtain LCA-4TR-M-30-760
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 460 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156602
LCA-4TR-M-30-910-AP-156602
Light curtain LCA-4TR-M-30-910
LCA-4TR-M-30-910-AP-156602
Light curtain LCA-4TR-M-30-910
- Light curtain master
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 910 mm
- Range 12 m
- With plug connector M12
- 2 safety outputs (OSSD)
- Installation material is included with the product

156611
LCA-4TR-S1-14-1060-AP-156611
Light curtain LCA-4TR-S1-14-1060
LCA-4TR-S1-14-1060-AP-156611
Light curtain LCA-4TR-S1-14-1060
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,060 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156612
LCA-4TR-S1-14-1210-AP-156612
Light curtain LCA-4TR-S1-14-1210
LCA-4TR-S1-14-1210-AP-156612
Light curtain LCA-4TR-S1-14-1210
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,210 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156605
LCA-4TR-S1-14-160-AP-156605
Light curtain LCA-4TR-S1-14-160
LCA-4TR-S1-14-160-AP-156605
Light curtain LCA-4TR-S1-14-160
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 160 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156606
LCA-4TR-S1-14-310-AP-156606
Light curtain LCA-4TR-S1-14-310
LCA-4TR-S1-14-310-AP-156606
Light curtain LCA-4TR-S1-14-310
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 310 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156607
LCA-4TR-S1-14-460-AP-156607
Light curtain LCA-4TR-S1-14-460
LCA-4TR-S1-14-460-AP-156607
Light curtain LCA-4TR-S1-14-460
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 460 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156608
LCA-4TR-S1-14-610-AP-156608
Light curtain LCA-4TR-S1-14-610
LCA-4TR-S1-14-610-AP-156608
Light curtain LCA-4TR-S1-14-610
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 610 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156609
LCA-4TR-S1-14-760-AP-156609
Light curtain LCA-4TR-S1-14-760
LCA-4TR-S1-14-760-AP-156609
Light curtain LCA-4TR-S1-14-760
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 760 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156610
LCA-4TR-S1-14-910-AP-156610
Light curtain LCA-4TR-S1-14-910
LCA-4TR-S1-14-910-AP-156610
Light curtain LCA-4TR-S1-14-910
- Light curtain slave 1
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 910 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156619
LCA-4TR-S1-30-1060-AP-156619
Light curtain LCA-4TR-S1-30-1060
LCA-4TR-S1-30-1060-AP-156619
Light curtain LCA-4TR-S1-30-1060
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,060 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156620
LCA-4TR-S1-30-1210-AP-156620
Light curtain LCA-4TR-S1-30-1210
LCA-4TR-S1-30-1210-AP-156620
Light curtain LCA-4TR-S1-30-1210
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,210 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156613
LCA-4TR-S1-30-160-AP-156613
Light curtain LCA-4TR-S1-30-160
LCA-4TR-S1-30-160-AP-156613
Light curtain LCA-4TR-S1-30-160
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 160 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156614
LCA-4TR-S1-30-310-AP-156614
Light curtain LCA-4TR-S1-30-310
LCA-4TR-S1-30-310-AP-156614
Light curtain LCA-4TR-S1-30-310
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 310 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156615
LCA-4TR-S1-30-460-AP-156615
Light curtain LCA-4TR-S1-30-460
LCA-4TR-S1-30-460-AP-156615
Light curtain LCA-4TR-S1-30-460
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 460 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156616
LCA-4TR-S1-30-610-AP-156616
Light curtain LCA-4TR-S1-30-610
LCA-4TR-S1-30-610-AP-156616
Light curtain LCA-4TR-S1-30-610
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 610 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156617
LCA-4TR-S1-30-760-AP-156617
Light curtain LCA-4TR-S1-30-760
LCA-4TR-S1-30-760-AP-156617
Light curtain LCA-4TR-S1-30-760
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 760 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156618
LCA-4TR-S1-30-910-AP-156618
Light curtain LCA-4TR-S1-30-910
LCA-4TR-S1-30-910-AP-156618
Light curtain LCA-4TR-S1-30-910
- Light curtain slave 1
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 910 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156626
LCA-4TR-S2-14-1060-AP-156626
Light curtain LCA-4TR-S2-14-1060
LCA-4TR-S2-14-1060-AP-156626
Light curtain LCA-4TR-S2-14-1060
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,060 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156627
LCA-4TR-S2-14-1210-AP-156627
Light curtain LCA-4TR-S2-14-1210
LCA-4TR-S2-14-1210-AP-156627
Light curtain LCA-4TR-S2-14-1210
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 1,210 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156621
LCA-4TR-S2-14-310-AP-156621
Light curtain LCA-4TR-S2-14-310
LCA-4TR-S2-14-310-AP-156621
Light curtain LCA-4TR-S2-14-310
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 310 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156622
LCA-4TR-S2-14-460-AP-156622
Light curtain LCA-4TR-S2-14-460
LCA-4TR-S2-14-460-AP-156622
Light curtain LCA-4TR-S2-14-460
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 460 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156623
LCA-4TR-S2-14-610-AP-156623
Light curtain LCA-4TR-S2-14-610
LCA-4TR-S2-14-610-AP-156623
Light curtain LCA-4TR-S2-14-610
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 610 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156624
LCA-4TR-S2-14-760-AP-156624
Light curtain LCA-4TR-S2-14-760
LCA-4TR-S2-14-760-AP-156624
Light curtain LCA-4TR-S2-14-760
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 760 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156625
LCA-4TR-S2-14-910-AP-156625
Light curtain LCA-4TR-S2-14-910
LCA-4TR-S2-14-910-AP-156625
Light curtain LCA-4TR-S2-14-910
- Light curtain slave 2
- For cascading (series connection)
- Resolution 14 mm
- Protective field height 910 mm
- Range 6 m
- With plug connector M12
- Installation material is included with the product

156633
LCA-4TR-S2-30-1060-AP-156633
Light curtain LCA-4TR-S2-30-1060
LCA-4TR-S2-30-1060-AP-156633
Light curtain LCA-4TR-S2-30-1060
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,060 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156634
LCA-4TR-S2-30-1210-AP-156634
Light curtain LCA-4TR-S2-30-1210
LCA-4TR-S2-30-1210-AP-156634
Light curtain LCA-4TR-S2-30-1210
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 1,210 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156628
LCA-4TR-S2-30-310-AP-156628
Light curtain LCA-4TR-S2-30-310
LCA-4TR-S2-30-310-AP-156628
Light curtain LCA-4TR-S2-30-310
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 310 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156629
LCA-4TR-S2-30-460-AP-156629
Light curtain LCA-4TR-S2-30-460
LCA-4TR-S2-30-460-AP-156629
Light curtain LCA-4TR-S2-30-460
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 460 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156630
LCA-4TR-S2-30-610-AP-156630
Light curtain LCA-4TR-S2-30-610
LCA-4TR-S2-30-610-AP-156630
Light curtain LCA-4TR-S2-30-610
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 610 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156631
LCA-4TR-S2-30-760-AP-156631
Light curtain LCA-4TR-S2-30-760
LCA-4TR-S2-30-760-AP-156631
Light curtain LCA-4TR-S2-30-760
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 760 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product

156632
LCA-4TR-S2-30-910-AP-156632
Light curtain LCA-4TR-S2-30-910
LCA-4TR-S2-30-910-AP-156632
Light curtain LCA-4TR-S2-30-910
- Light curtain slave 2
- For cascading (series connection)
- Resolution 30 mm
- Protective field height 910 mm
- Range 12 m
- With plug connector M12
- Installation material is included with the product
Consent
